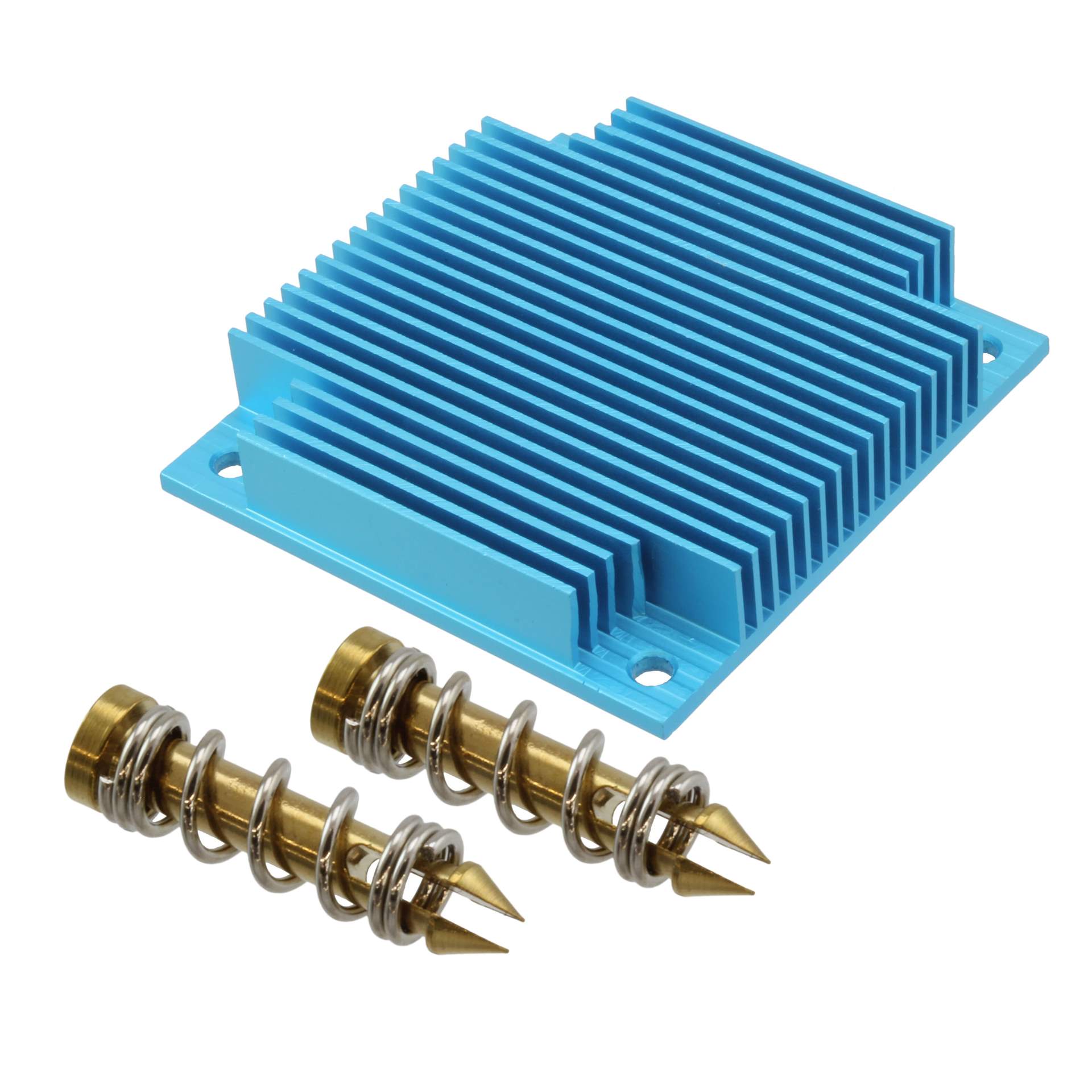

ATS-12D-40-C1-R0 Real Image
Same model may have multiple batches, images only for reference.

ATS-12D-40-C1-R0

Part No ATS-12D-40-C1-R0
Manufacturer Advanced Thermal Solutions Inc.
Catalog Thermal - Heat Sinks
Description HEATSINK 57.9X60.96X11.43MM / Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount
Datasheet
ATS-12D-40-C1-R0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>Thermal - Heat Sinks
Mfr Advanced Thermal Solutions Inc.
Series pushPIN™
Package Bulk
Type Top Mount
Package Cooled Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method Push Pin
Shape Rectangular, Fins
Length 2.280" (57.90mm)
Width 2.400" (60.96mm)
Fin Height 0.450" (11.43mm)
Thermal Resistance @ Forced Air Flow 14.55°C/W @ 100 LFM
Material Aluminum
Material Finish Blue Anodized
Base Product Number ATS-12D
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.5100
Standard Package 100
Win Source Part Number 1159103-ATS-12D-40-C1-R0
Ultra Librarian 3D Model Ultra Librarian ATS-12D-40-C1-R0 CAD Model

Description

The ATS-12D-40-C1-R0 pushPIN™ heat sink is a top mount thermal management solution for a wide range of electronic components.

  • Mounting Type: Top Mount
  • Length: 2.280 inches
  • Width: 2.400 inches
  • Material: Aluminum
  • Shape: Rectangular with Fins
  • Suitable Components: BGA, LGA, CPU, ASIC, etc.
  • Attachment Method: Push Pin
  • Material Finish: Blue Anodized
  • Thermal Resistance @ Forced Air Flow: 14.55°C/W @ 100 LFM
