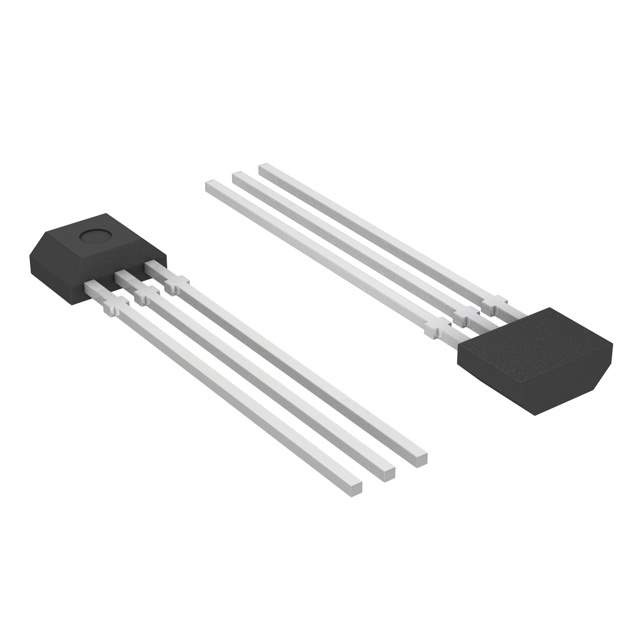

The A3240EUA is a sensitive, unipolar Hall-effect switch designed for operation with a single magnetic pole. Manufactured by Allegro MicroSystems, it's primarily used in applications requiring simple and reliable magnetic sensing, such as proximity detection, position sensing, and speed sensing.

Applications

• Proximity detection
• Position sensing
• Speed sensing
• Brushless DC motor commutation
• Lid closure detection in laptops and other devices

Features

• Unipolar Switch: Operates with a single magnetic pole (either North or South).
• High Sensitivity: Responds to weak magnetic fields.
• Low Voltage Operation: Suitable for battery-powered applications.
• Open-Collector Output: Compatible with various logic circuits.
• Small Size: Allows for easy integration into compact designs.
• Robust Design: Withstands harsh environmental conditions.

Benefits

• Simple and Reliable Operation: Provides a straightforward solution for magnetic sensing.
• Low Power Consumption: Extends battery life in portable devices.
• Versatile Application: Suitable for a wide range of sensing applications.
• Easy Integration: Can be easily incorporated into existing designs.
• Cost-Effective Solution: Provides a balance of performance and affordability.

The A3240EUA integrates a Hall-effect sensor, amplifier, Schmitt trigger, and open-collector output on a single chip. When a magnetic field of sufficient strength and polarity is present, the output switches to the low state. When the magnetic field is removed, the output switches to the high state. Its small size and robust design make it ideal for use in demanding applications.

Specifications:

• Operating Voltage: (Check datasheet, typically 3 V to 24 V)
• Operating Temperature Range: (Check datasheet, typically -40°C to +85°C)
• Output Type: Open Collector
• Sensitivity: (Check datasheet for specific Gauss values for operate and release points)
• Package: (Check datasheet, typically a small SIP or similar package)
