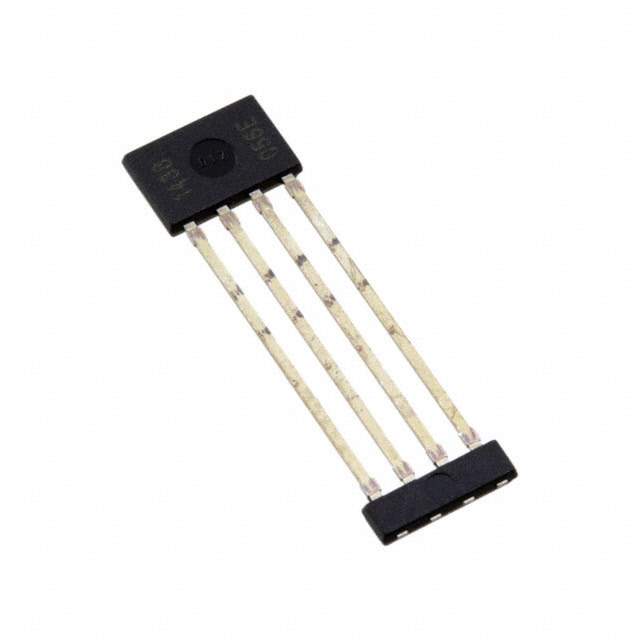

ACS70310LKTATN-005B5-C Real Image1 ACS70310LKTATN-005B5-C Real Image2
Same model may have multiple batches, images only for reference.
ACS70310LKTATN-005B5-C Real Image1 ACS70310LKTATN-005B5-C Real Image2
ACS70310LKTATN-005B5-C Real Image1 ACS70310LKTATN-005B5-C Real Image2
Same model may have multiple batches, images only for reference.

ACS70310LKTATN-005B5-C

Part No ACS70310LKTATN-005B5-C
Manufacturer Allegro MicroSystems, LLC
Catalog Magnetic Sensors - Linear, Compass (ICs)
Description VERY HIGH PRECISION LINEAR HALL- / Hall Effect Sensor Single Axis 4-SIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Magnetic Sensors>Linear, Compass (ICs)
Mfr Allegro MicroSystems, LLC
Series Automotive, AEC-Q100
Package Tape & Reel
Technology Hall Effect
Axis Single
Output Type Analog Voltage
Sensing Range -
Voltage - Supply 4.5V ~ 5.5V
Current - Supply (Max) 15mA
Current - Output (Max) 10mA
Resolution -
Bandwidth 240kHz
Temperature Range - Operating -40°C ~ 150°C (TA)
Features Programmable, Temperature Compensated
Supplier Device Package 4-SIP
Mounting Type Through Hole
Package / Case 4-SIP Module
Base Product Number ACS703
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 4,000 pcs
Win Source Part Number 1381311-ACS70310LKTATN-005B5-C
Ultra Librarian 3D Model Ultra Librarian ACS70310LKTATN-005B5-C CAD Model

Description

The ACS70310LKTATN-005B5-C is a programmable linear Hall effect sensor designed for automotive applications.

  • Output Type: Analog Voltage
  • Bandwidth: 240kHz
  • Voltage Supply: 4.5V to 5.5V
  • Maximum Supply Current: 15mA
  • Axis: Single
  • Sensing Range: Not Specified
  • Mounting Type: Through Hole
  • Package: 4-SIP Module
  • Manufacturer: Allegro MicroSystems, LLC
  • Series: ACS703
  • Moisture Sensitivity Level: Not Applicable
