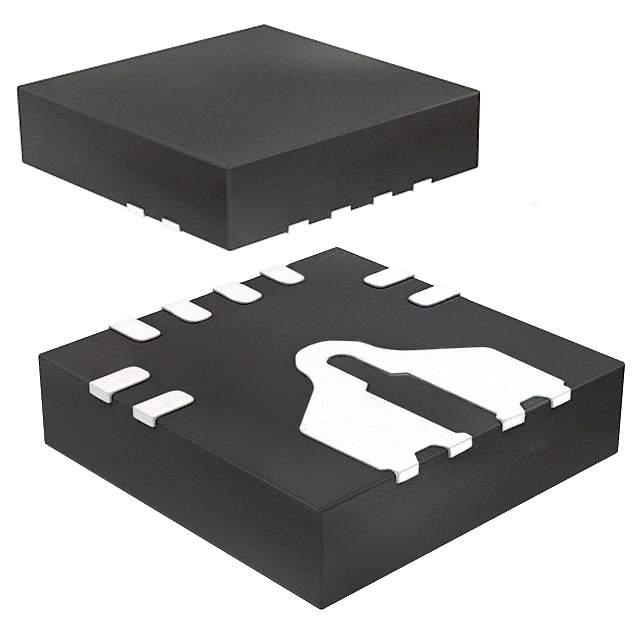

ACS711KEXLT-15AB-T Real Image ACS711KEXLT-15AB-T real image21475 ACS711KEXLT-15AB-T real image21476 ACS711KEXLT-15AB-T Real Image1 ACS711KEXLT-15AB-T Real Image2
Same model may have multiple batches, images only for reference.
ACS711KEXLT-15AB-T Real Image ACS711KEXLT-15AB-T real image21475 ACS711KEXLT-15AB-T real image21476 ACS711KEXLT-15AB-T Real Image1 ACS711KEXLT-15AB-T Real Image2
ACS711KEXLT-15AB-T Real Image ACS711KEXLT-15AB-T real image21475 ACS711KEXLT-15AB-T real image21476 ACS711KEXLT-15AB-T Real Image1 ACS711KEXLT-15AB-T Real Image2
Same model may have multiple batches, images only for reference.

ACS711KEXLT-15AB-T

Part No ACS711KEXLT-15AB-T
Manufacturer Allegro MicroSystems, LLC
Catalog Current Transducers
Description SENSOR CURRENT HALL 15.5A AC/DC
Datasheet
ACS711KEXLT-15AB-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Allegro MicroSystems, LLC
Packaging Reel package
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 15.5A
Number of Channels 1
Output Ratiometric, Voltage
Sensitivity 90mV/A
Frequency DC ~ 100kHz
Linearity ±1%
Accuracy ±5%
Operating Supply Voltage 3 V ~ 5.5 V
Response Time 4.6μs
Maximum Supply Current 5.5mA
Operating Temperature Range -40°C ~ 125°C
Polarization Bidirectional
Mounting SMD
Package 12-WFQFN
Win Source Part Number 766977-ACS711KEXLT-15AB-T
Popularity Medium
Supply and Demand Status Limited
Family Name ACS711
Introduction Date November 03, 2010
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian ACS711KEXLT-15AB-T CAD Model

Description

The ACS711KEXLT-15AB-T is a Hall Effect open-loop current sensor manufactured by Allegro MicroSystems.

  • Sensitivity: 90mV/A
  • Supply Voltage: 3V ~ 5.5V
  • Maximum Supply Current: 5.5mA
  • Output: Ratiometric, voltage
  • Polarization: Bidirectional
  • Package: 12-WFQFN
  • Operating Temperature: -40°C ~ 125°C
