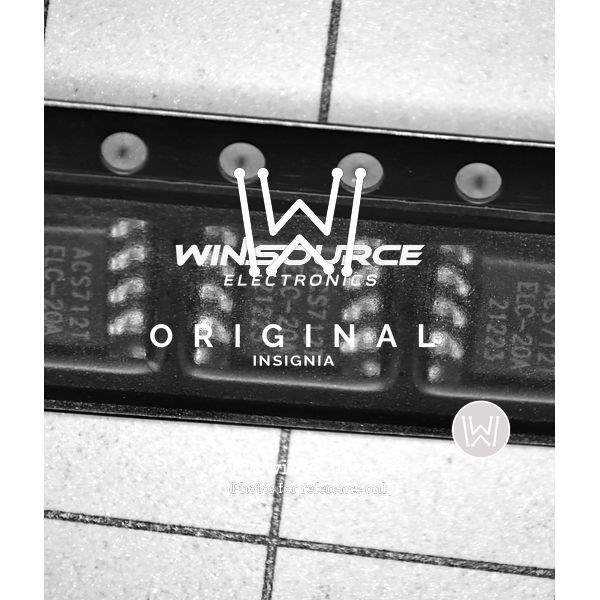

The ACS712TELC-20A is a fully integrated, Hall effect-based linear current sensor IC from Allegro MicroSystems. It is designed for AC or DC current sensing in industrial, commercial, and communications systems. The device provides economical and precise solutions for current sensing in a compact package.

Applications:

• Motor control systems: Monitoring current flow in motor drives for efficient and safe operation.
• Load detection and management: Identifying and managing electrical loads in various applications.
• Switched-mode power supplies: Ensuring accurate current regulation and overcurrent protection.
• Overcurrent fault protection: Detecting and responding to excessive current conditions to prevent damage.
• Inverters: Monitoring current in solar inverters and other power conversion systems.

Features:

• Low-noise analog signal path: Provides accurate current measurement with minimal noise interference.
• Small footprint, low-profile SOIC8 package: Enables compact integration into circuit designs.
• 5 V, single supply operation: Simplifies power supply requirements.
• 185 kHz bandwidth: Allows for fast response to changes in current.
• Nearly zero magnetic hysteresis: Improves accuracy and repeatability.
• Ratiometric output from supply voltage: The output voltage is proportional to the supply voltage.
• Operating temperature range of -40°C to 85°C: Suitable for use in a wide range of environmental conditions.
• High isolation voltage: Provides electrical isolation between the current conductor and the IC circuitry.

Benefits:

• Improved energy efficiency: Accurate current monitoring enables optimization of energy consumption.
• Enhanced system protection: Overcurrent detection prevents damage to equipment and components.
• Simplified design: Integrated Hall effect sensor reduces external component count.
• Reduced system cost: Cost-effective current sensing solution for various applications.
• Increased system reliability: Accurate and reliable current measurement ensures stable operation.

Additional Details:

The ACS712TELC-20A outputs an analog voltage proportional to the applied current. For the -20A to +20A range, the output voltage varies linearly. The sensitivity is typically 100 mV/A. The quiescent output voltage (no current) is typically VCC / 2. The device contains a low-resistance current conductor, minimizing power loss. The internal resistance of this conductive path is typically 1.2 mΩ, which helps reduce heat generation within the sensor. Proper decoupling techniques are recommended to minimize noise and ensure accurate measurements. The IC is RoHS compliant, aligning with environmental regulations.
