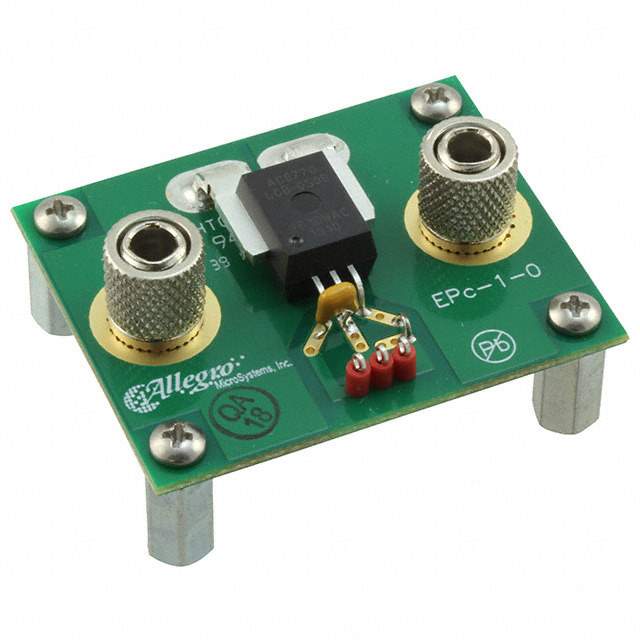

ASEK770LCB-050U-T-DK Real Image
Same model may have multiple batches, images only for reference.

ASEK770LCB-050U-T-DK

Part No ASEK770LCB-050U-T-DK
Manufacturer Allegro MicroSystems, LLC
Catalog Evaluation Boards - Sensors
Description BOARD DEMO 770LCB-050U SENSOR / ACS770 - Current Sensor Sensor Evaluation Board
Datasheet
ASEK770LCB-050U-T-DK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers - Evaluation Boards - Sensors
Mfr Allegro MicroSystems
Package Box
Sensor Type Current Sensor
Sensing Range 50A
Sensitivity 80mV/A
Voltage - Supply 4.5V ~ 5.5V
Supplied Contents Board(s)
Utilized IC / Part ACS770
Base Product Number ASEK77
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1347286-ASEK770LCB-050U-T-DK
Ultra Librarian 3D Model Ultra Librarian ASEK770LCB-050U-T-DK CAD Model

Description

The ACS770 Current Sensor is a highly reliable, precise, and contactless current sensor that can measure the current flowing through a conductor without requiring physical contact with the conductor.

  • Sensing Range: 50A
  • Sensitivity: 80mV/A
  • IC/Part: ACS770
  • Voltage Supply: 4.5V ~ 5.5V
  • Package: Board(s)
  • Supplied In: Box Package
  • Applications: Power supplies, motor control, and overcurrent protection
  • ECCN: EAR99
  • REACH: Unaffected
