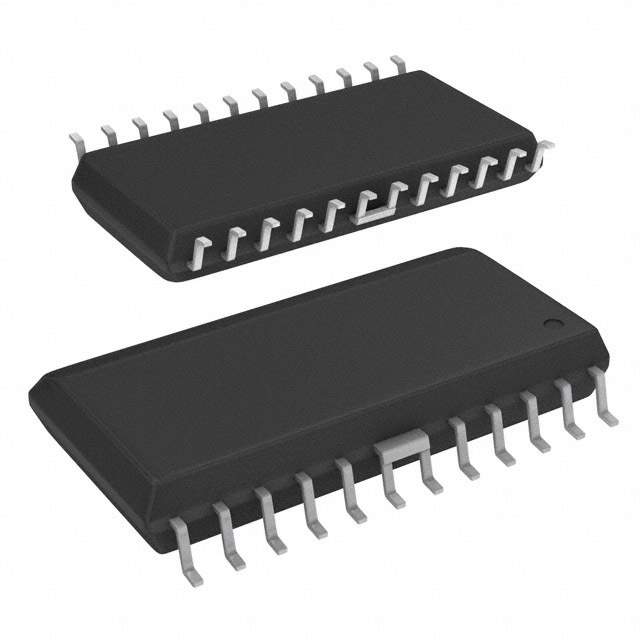

UDN2916LBTR Real Image
Same model may have multiple batches, images only for reference.

UDN2916LBTR

Part No UDN2916LBTR
Manufacturer Allegro MicroSystems, LLC
Catalog PMIC - Motor Drivers, Controllers
Description IC MOTOR DRIVER PAR 24SOIC
Datasheet
UDN2916LBTR Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Allegro MicroSystems, LLC
Packaging Reel - TR
Status Obsolete(EOL)
Motor Type - Stepper Bipolar
Motor Type - AC, DC Brushed DC
Purpose Driver - Fully Integrated, Control and Power Stage
Technology Bipolar
Applications General Purpose
Output Current 750mA
Supply Voltage - Operating 4.75 V to 5.25 V
Voltage - Load 10 V to 45 V
Temperature Range - Operating -20°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 24-SOIC
Win Source Part Number 126062-UDN2916LBTR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Computers & Computer Peripherals, Industrial, Communications & Networking
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian UDN2916LBTR CAD Model

Description

The UDN2916LBTR is a fully integrated driver and control stage used to control a bipolar stepper motor or brushed DC motor. This product is manufactured by Allegro MicroSystems, LLC. The supply and demand status of this product is balance.

  • Status: Obsolete (EOL)
  • Operating Temperature: -20°C to 150°C (TJ)
  • Package: 24-SOIC
  • Maximum Output Current: 750mA
  • Voltage Load: 10V to 45V
  • Commonly Used In: Computers & computer peripherals, industrial, communications & networking.
