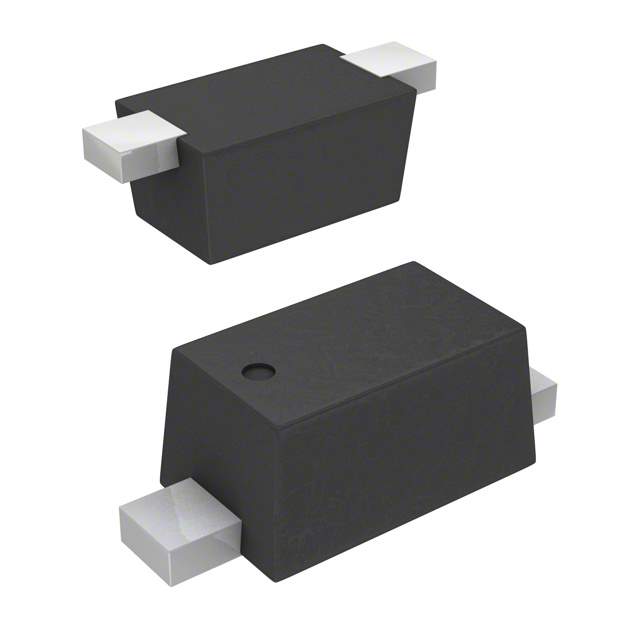

SP1003-01DTG Real Image
Same model may have multiple batches, images only for reference.

SP1003-01DTG

Part No SP1003-01DTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 5VWM 12VC SOD723
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 6V
Max Clamping Voltage 12V (Typ)
Peak Pulse Current(Ippm) 7A (8/20μs)
Applications General Purpose
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SOD-723
Win Source Part Number 030568-SP1003-01DTG
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Consumer Electronics, Portable Devices, Medical, Automotive, Industrial
Ultra Librarian 3D Model Ultra Librarian SP1003-01DTG CAD Model

Description

The 030568-SP1003-01DTG is a Zener diode that finds its application in general purpose circuits from Littelfuse Inc.

  • Application: general purpose circuits
  • Mounting: surface mount device
  • Package: SOD-723 package
  • Stand-off Voltage: 5V
  • Minimum Breakdown Voltage: 6V
  • Maximum Clamping Voltage: 12V
  • Peak Pulse Current: 7A
  • Operating Temperature: -40°C to 125°C
  • Usage: commonly used in consumer electronics, portable devices, medical, automotive, and industrial applications
  • Market Status: highly popular in the market with sufficient supply and demand status
