Overview of the LMV7239QM7X/NOPB from Texas Instruments

The LMV7239QM7X/NOPB is a high-performance, low-voltage comparator designed by Texas Instruments, known for its precision and power efficiency. This component is particularly well-suited for portable and battery-powered applications where power consumption and space are critical considerations.

Key Features

• Low Voltage Operation: The LMV7239 operates at a supply voltage range from 2.7V to 5V, making it ideal for use in systems where power efficiency is paramount.
• Low Power Consumption: With a typical supply current of just 65 µA, this comparator helps to extend battery life in portable devices.
• High Speed: It boasts a fast propagation delay of 200 ns, providing quick response times for high-speed signal processing applications.
• Push-Pull Output: The LMV7239 features a push-pull output stage that can sink or source current. This eliminates the need for an external pull-up resistor and allows for direct interfacing with TTL, CMOS, and other logic levels.
• Rail-to-Rail Input: The input common-mode voltage range extends from the negative supply to within 1.2V of the positive supply, offering enhanced flexibility in various circuit designs.

Applications

The LMV7239QM7X/NOPB is versatile and can be used in a wide array of applications, including:

• Notebook computers
• Cell phones
• Portable communication devices
• Window comparators
• Battery-powered alarms and monitoring systems

Package and Quality

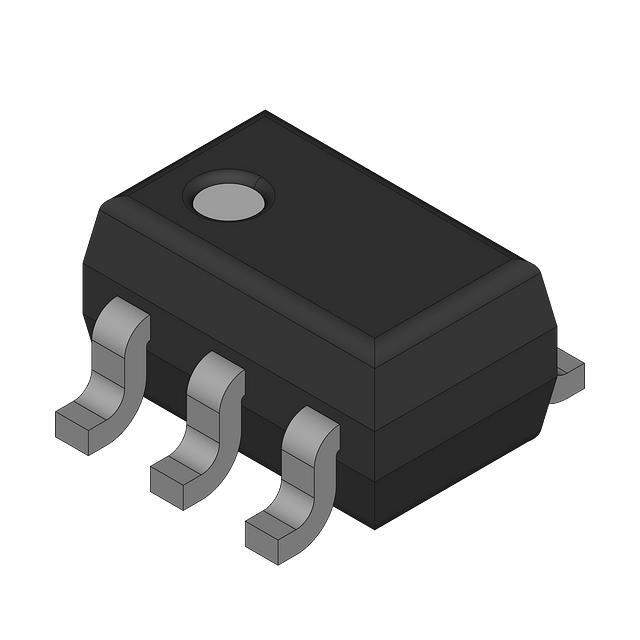

This comparator comes in a space-saving 5-pin SC70 package, which is highly beneficial for compact designs. Additionally, the LMV7239QM7X/NOPB is part of Texas Instruments' "Green" product initiative, which ensures that the device complies with RoHS (Restriction of Hazardous Substances) standards, minimizing the environmental impact.

Overall, the LMV7239QM7X/NOPB from Texas Instruments stands out as a reliable and energy-efficient solution for designers looking to optimize their high-speed, low-voltage systems without compromising on performance.
