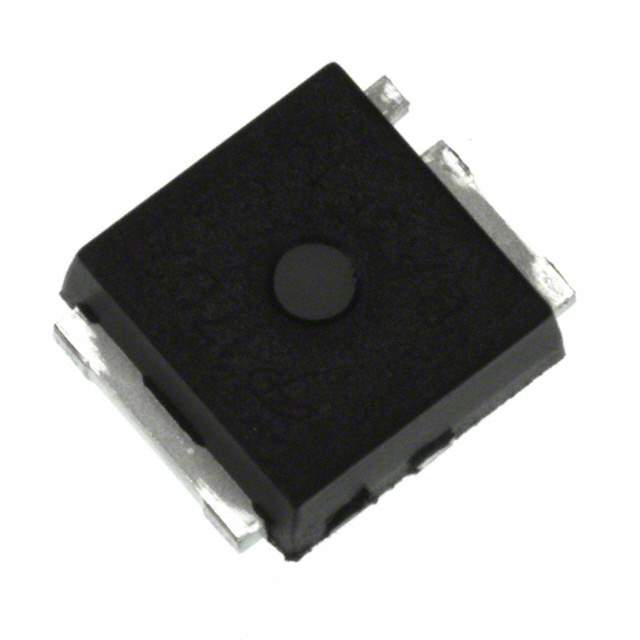

AOL1240 Real Image
Same model may have multiple batches, images only for reference.

AOL1240

Part No AOL1240
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description Trans MOSFET N-CH 40V 69A 3-Pin Ultra SO T/R / MOSFET N-CH 40V 19A 8ULTRASO
Datasheet
AOL1240 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 40V
Continuous Drain Current at 25°C 19A (Ta), 69A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 2.3V @ 250μA
Max Gate Charge 50.5nC @ 10V
Max Input Capacitance 3800pF @ 20V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 2.1W (Ta), 125W (Tc)
Maximum Rds On at Id,Vgs 3 mOhm @ 20A, 10V
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting SMD (SMT)
Case / Package UltraSO-8
Dimension 3-PowerSMD, Flat Leads
Win Source Part Number 1016986-AOL1240
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name AOL1240
Introduction Date September 26, 2011
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian AOL1240 CAD Model

Description

The AOL1240 from Alpha & Omega Semiconductor Inc. is an N-channel MOSFET available in an UltraSO-8 package.

  • Drain-Source Breakdown Voltage: 40V
  • Continuous Drain Current @ 25°C: 19A @ 25°C
  • Rds On (Max) @ Id,Vgs: 3 mOhm @ 20A, 10V
  • Operating Temperature: -55°C to 175°C
