AON2408

Part No AON2408
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N CH 20V 8A DFN 2x2B
Datasheet
AON2408 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 8A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 2.5V, 4.5V
Gate-Source Threshold Voltage 1.2V @ 250μA
Max Gate Charge 7nC @ 4.5V
Max Input Capacitance 782pF @ 10V
Maximum Gate-Source Voltage ±12V
Power Dissipation (Max) 2.8W (Ta)
Maximum Rds On at Id,Vgs 14.5 mOhm @ 8A, 4.5V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)

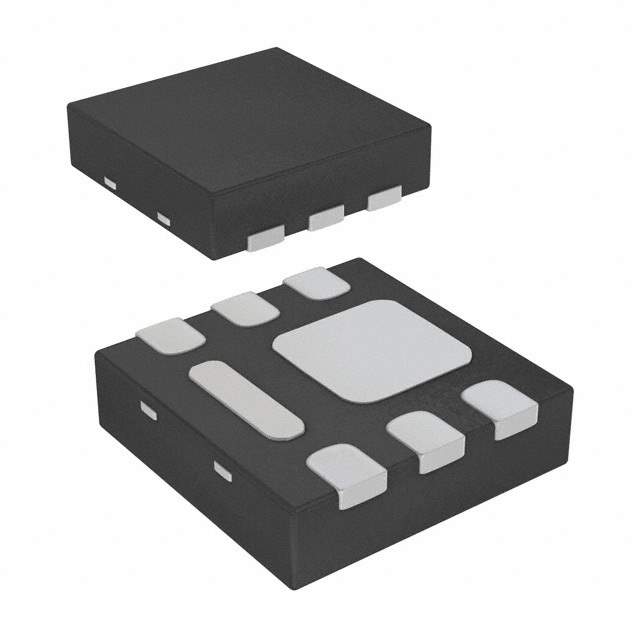

Case / Package 6-DFN-EP (2x2)
Dimension 6-UDFN Exposed Pad
Win Source Part Number 115540-AON2408
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AON2408 CAD Model

Description

AON2408 - High-Current Capacity MOSFET

The AON2408 is specifically built to manage high-current applications, delivering exceptional power efficiency and thermal management. Ideal for power-intensive projects, it ensures reliability under heavy load conditions.

  • Application Projects:
    • Power management systems
    • Motor control applications
    • DC/DC converters
  • Features and Benefits:
    • High-current capacity
    • Excellent thermal performance
    • Enhanced efficiency for power management
  • Additional Details:
    • Low on-state resistance
    • High-speed switching capabilities
