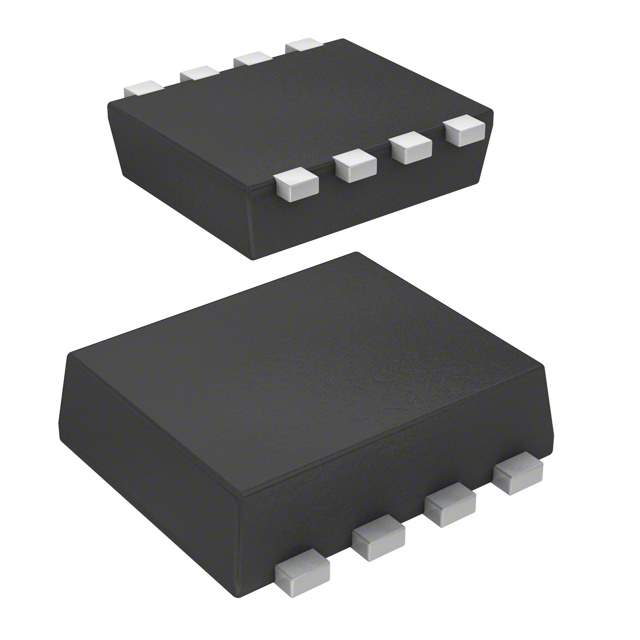

AON3814 Real Image
Same model may have multiple batches, images only for reference.

AON3814

Part No AON3814
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 2N-CH 20V 6A 8DFN
Datasheet
AON3814 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Active
FET Type 2 N-Channel (Dual) Common Drain
FET Feature Logic Level Gate
Drain-Source Breakdown Voltage 20V
Maximum Rds On at Id,Vgs 17 mOhm @ 6A, 4.5V
Gate-Source Threshold Voltage 1.1V @ 250μA
Max Gate Charge 13nC @ 4.5V
Max Input Capacitance 1100pF @ 10V
Maximum Power Dissipation 2.5W
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 8-DFN (2.9x2.3)
Win Source Part Number 1017021-AON3814
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AON3814 CAD Model

Description

The Alpha & Omega Semiconductor Inc. AON3814 is a 2 N-Channel (Dual) Common Drain type electronic component that comes with a logic level gate feature.

  • Mounting Type: SMD (SMT)
  • Packaging: Reel - TR
  • Maximum Power Dissipation: 2.5W
  • Drain-Source Breakdown Voltage: 20V
  • Gate-Source Threshold Voltage: 1.1V @ 250μA
  • Maximum Gate Charge: 13nC @ 4.5V
  • Maximum Input Capacitance: 1100pF @ 10V
  • Maximum Rds On @ Id,Vgs: 17 mOhm @ 6A, 4.5V
  • Status: Active
  • Operating Temperature: -55°C to 150°C (TJ)
  • Case / Package: 8-DFN (2.9x2.3)
