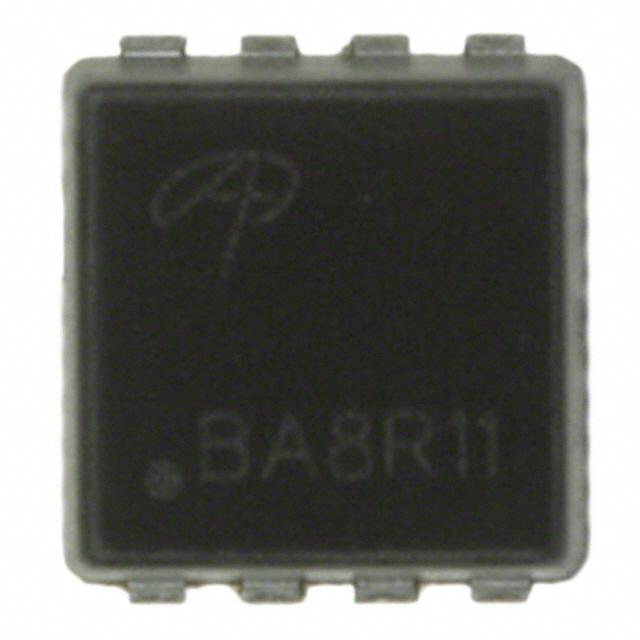

AON6454A Alpha & Omega Semiconductor Inc.
Same model may have multiple batches, images only for reference.

AON6454A

Part No AON6454A
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description Trans MOSFET N-CH 150V 31A 8-Pin DFN EP T/R / MOSFET N-CH 150V 5A DFN5X6
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 150V
Continuous Drain Current at 25°C 31A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 7V, 10V
Gate-Source Threshold Voltage 4.6V @ 250μA
Max Gate Charge 40nC @ 10V
Max Input Capacitance 2055pF @ 75V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 2.3W (Ta), 83W (Tc)
Maximum Rds On at Id,Vgs 38 mOhm @ 20A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 8-DFN (5x6)
Dimension 8-PowerSMD, Flat Leads
Win Source Part Number 078171-AON6454A
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name AON6454A
Introduction Date May 08, 2011
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian AON6454A CAD Model

Description

Features and Benefits

  • Low R<sub>DS(on) for optimal efficiency
  • Fast switching capability for high-frequency applications
  • Thermal stability for robust performance

Applications and Projects

  • Switching regulators
  • Motor drives
  • Power converters
  • Load switch applications

The AON6454A is a high-performance MOSFET designed for applications requiring efficient power management and fast switching speed. It is known for its low resistance and high thermal stability, making it a reliable choice for projects demanding robust performance under varying conditions.
