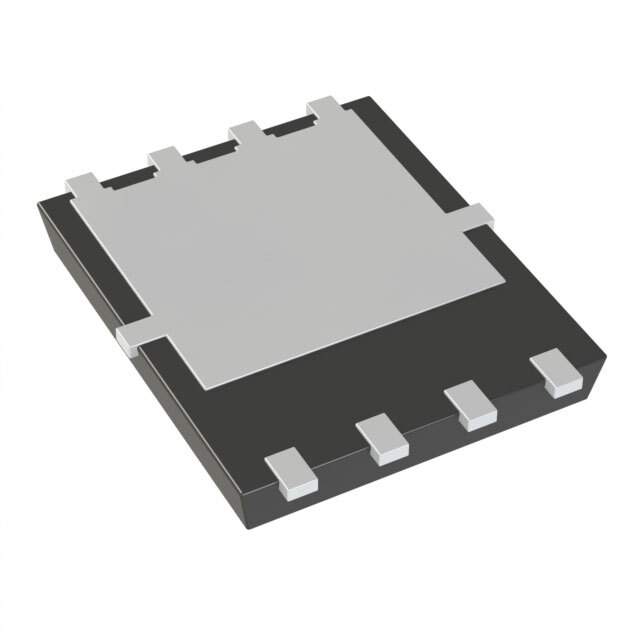

AON6566

Name: AON6566
Brand: Alpha & Omega Semiconductor Inc.
SKU: 431652
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	AON6566
Manufacturer	Alpha & Omega Semiconductor Inc.
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N CH 30V 29A 8DFN
Datasheet	AON6566 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Alpha & Omega Semiconductor Inc.
Packaging	Reel - TR
Status	Active
Polarity	N-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	30V
Continuous Drain Current at 25°C	29A (Ta), 32A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Gate-Source Threshold Voltage	2.4V @ 250μA
Max Gate Charge	33nC @ 10V
Max Input Capacitance	1550pF @ 15V
Maximum Gate-Source Voltage	±20V
Power Dissipation (Max)	6W (Ta), 25W (Tc)
Maximum Rds On at Id,Vgs	5 mOhm @ 20A, 10V
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	SMD (SMT)
Case / Package	8-DFN (5x6)
Dimension	8-PowerSMD, Flat Leads
Win Source Part Number	1017081-AON6566
Popularity	Medium
Supply and Demand Status	Sufficient
Ultra Librarian 3D Model	Ultra Librarian AON6566 CAD Model

Alternative Products

Description

The AON6566 by Alpha & Omega Semiconductor Inc. is a MOSFET designed for use in discrete semiconductor products.

Polarity: N-Channel
Drain-Source Breakdown Voltage: 30V
Continuous Drain Current @ 25°C: 29A (Ta), 32A (Tc)
Gate-Source Threshold Voltage: 2.4V @ 250μA
Maximum Gate Charge: 33nC @ 10V
Maximum Rds On @ Id,Vgs: 5 mOhm @ 20A, 10V
Packaging: reel
Supply and Demand Status: sufficient
