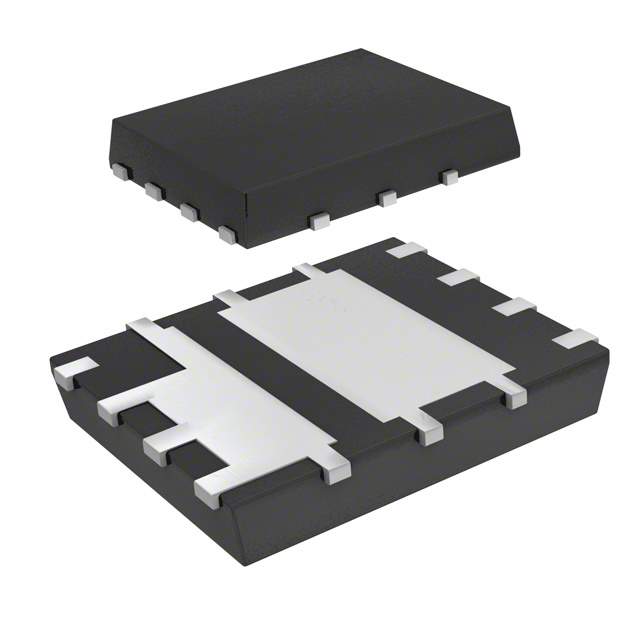

AON6974 Real Image
Same model may have multiple batches, images only for reference.

AON6974

Part No AON6974
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 2N-CH 30V 22A/30A 8DFN
Datasheet
AON6974 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Obsolete(EOL)
FET Type 2 N-Channel (Half Bridge)
FET Feature Logic Level Gate
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 22A, 30A
Maximum Rds On at Id,Vgs 5.2 mOhm @ 20A, 10V
Gate-Source Threshold Voltage 2.2V @ 250μA
Max Gate Charge 22.5nC @ 10V
Max Input Capacitance 951pF @ 15V
Maximum Power Dissipation 3.6W, 4.3W
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 8-DFN (5x6)
Win Source Part Number 1017111-AON6974
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AON6974 CAD Model

Description

The Alpha & Omega Semiconductor Inc. AON6974 MOSFET from Alpha & Omega Semiconductor Inc. is a 2 N-Channel (Half Bridge) FET that features a logic level gate.

  • Type: 2 N-Channel (Half Bridge) FET
  • Feature: Logic Level Gate
  • Maximum Power Dissipation: 3.6W, 4.3W
  • Drain-Source Breakdown Voltage: 30V
  • Continuous Drain Current: 22A, 30A
  • Maximum Rds On: 5.2 mOhm @ 20A, 10V
  • Package: 8-DFN (5x6)
  • Mounting: SMD (SMT)
