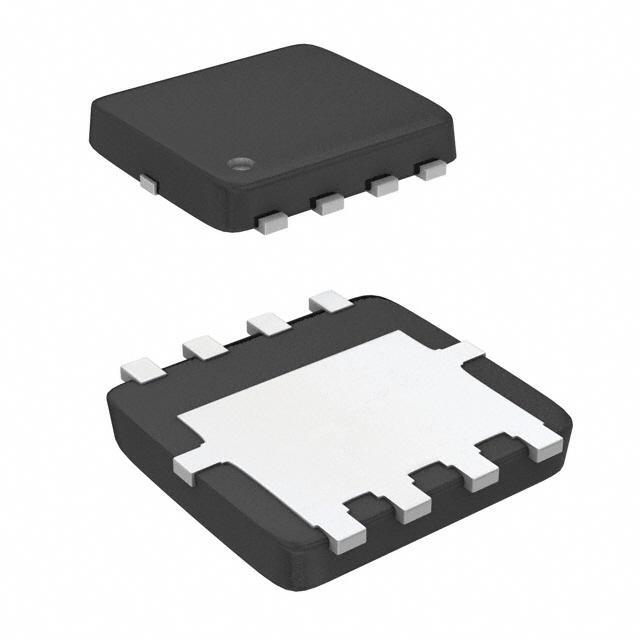

AON7436 Alpha & Omega Semiconductor Inc. AON7436 Real Image AON7436 real image
Same model may have multiple batches, images only for reference.
AON7436 Alpha & Omega Semiconductor Inc. AON7436 Real Image AON7436 real image
AON7436 Alpha & Omega Semiconductor Inc. AON7436 Real Image AON7436 real image
Same model may have multiple batches, images only for reference.

AON7436

Part No AON7436
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description Trans MOSFET N-CH 20V 23A 8-Pin DFN-A EP T/R / MOSFET N-CH 20V 9A 8DFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 9A (Ta), 23A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 1.8V, 10V
Gate-Source Threshold Voltage 1.1V @ 250μA
Max Gate Charge 15nC @ 10V
Max Input Capacitance 630pF @ 10V
Maximum Gate-Source Voltage ±12V
Power Dissipation (Max) 3.1W (Ta), 16.7W (Tc)
Maximum Rds On at Id,Vgs 19 mOhm @ 9A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 8-DFN (3x3)
Dimension 8-PowerSMD, Flat Leads
Win Source Part Number 009826-AON7436
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name AON7436
Introduction Date August 30, 2010
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian AON7436 CAD Model

Description

AON7436 - N-Channel MOSFET

The AON7436 is a high-performance N-Channel MOSFET designed to deliver exceptional efficiency and reliability in a compact package. Made with advanced semiconductor technology, it ensures optimal performance in various electronic applications.

Features and Benefits:

  • Low On-Resistance: Minimizes power loss and enhances efficiency.
  • High-Speed Switching: Improves operational efficiency in dynamic applications.
  • RoHS Compliant: Environmentally friendly and meets all regulatory standards.

Applications:

  • DC-DC Converters
  • Battery Management Systems
  • Power Supply Modules
  • Motor Control
