The Alpha & Omega Semiconductor Inc. AON7452 is an N-Channel MOSFET with a drain-source breakdown voltage of 100V and a continuous drain current of 2.5A (Ta), 5.5A (Tc).

• Channel Type: N-Channel
• Drain-Source Breakdown Voltage: 100V
• Continuous Drain Current: 2.5A (Ta), 5.5A (Tc)
• Gate-Source Threshold Voltage: 4.7V @ 250μA
• Gate Charge: 4nC @ 10V

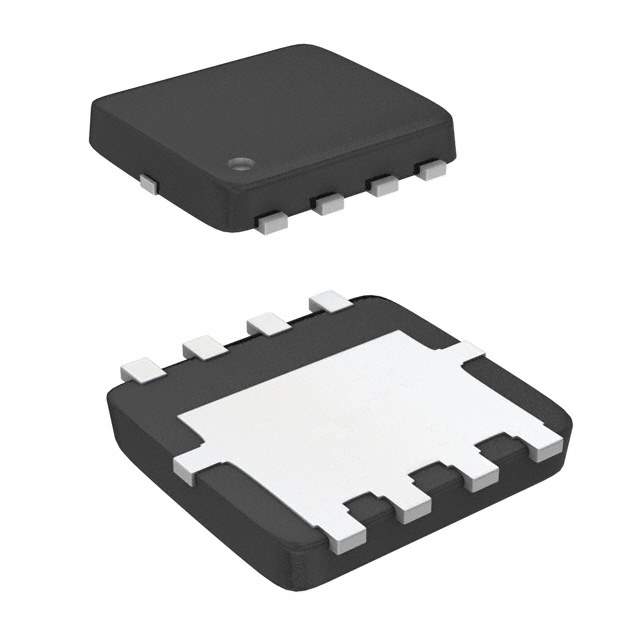

• Package: 8-DFN (3x3) SMD (SMT)
• Power Dissipation (Max): 3.1W (Ta), 17W (Tc)
• Temperature Range: -55°C to 150°C (TJ)
• Lifecycle Status: Obsolete (EOL)
• Supply and Demand: Balanced
