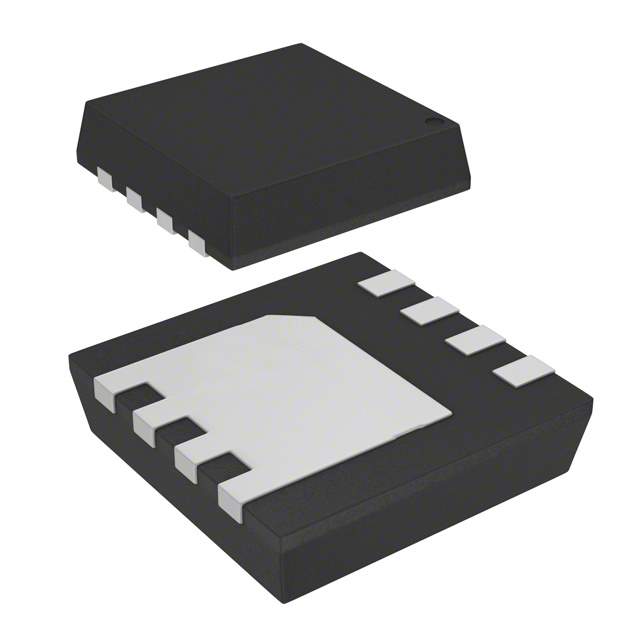

AON7784 Real Image
Same model may have multiple batches, images only for reference.

AON7784

Part No AON7784
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V 31A 8DFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 31A (Ta), 50A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 2.1V @ 250μA
Max Gate Charge 34nC @ 10V
Max Input Capacitance 4600pF @ 15V
Maximum Gate-Source Voltage ±12V
FET Feature Schottky Diode (Body)
Power Dissipation (Max) 6.2W (Ta), 83W (Tc)
Maximum Rds On at Id,Vgs 3.5 mOhm @ 20A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 8-DFN-EP (3.3x3.3)
Dimension 8-PowerWDFN
Win Source Part Number 1017154-AON7784
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AON7784 CAD Model

Description

The Alpha & Omega Semiconductor Inc. AON7784 is an N-Channel MOSFET type electronic component that comes with a Schottky diode (Body) feature.

  • Manufacturer: Alpha & Omega Semiconductor Inc.
  • MOSFET Feature: Schottky Diode (Body)
  • Mounting Type: SMD (SMT)
  • Packaging: Reel - TR
  • Maximum Power Dissipation: 6.2W (Ta), 83W (Tc)
  • Drive Voltage: 4.5V, 10V (Max Rds On, Min Rds On)
  • Status: Obsolete (EOL)
  • Operating Temperature Range: -55°C to 150°C (TJ)
  • Case/Package: 8-DFN-EP (3.3x3.3)
  • Dimension: 8-PowerWDFN
  • Drain-Source Breakdown Voltage: 30V
  • Continuous Drain Current: 31A (Ta), 50A (Tc) @ 25°C
  • Gate-Source Threshold Voltage: 2.1V @ 250μA
  • Maximum Gate Charge: 34nC @ 10V
  • Maximum Input Capacitance: 4600pF @ 15V
  • Maximum Gate-Source Voltage: ±12V
  • Maximum Rds On: 3.5 mOhm @ 20A, 10V
