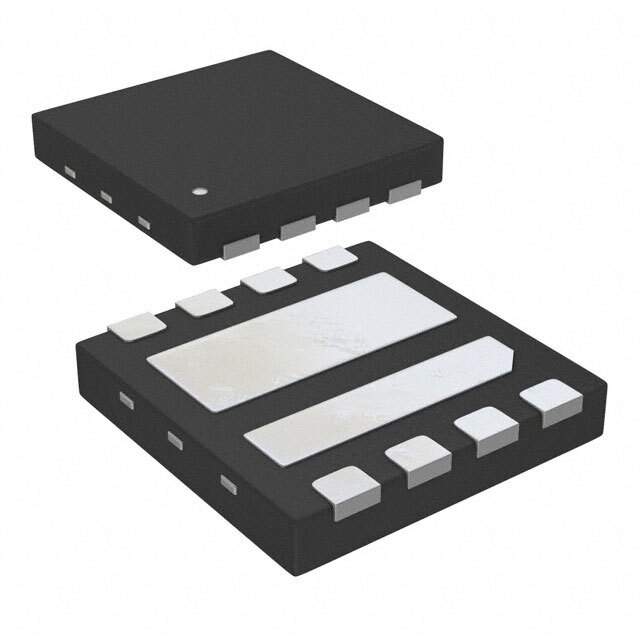

AON7932 Real Image
Same model may have multiple batches, images only for reference.

AON7932

Part No AON7932
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 2N-CH 30V 6.6A/8.1A 8DFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Obsolete(EOL)
FET Type 2 N-Channel (Half Bridge)
FET Feature Logic Level Gate
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 6.6A, 8.1A
Maximum Rds On at Id,Vgs 20 mOhm @ 6.6A, 10V
Gate-Source Threshold Voltage 2.4V @ 250μA
Max Gate Charge 6.5nC @ 10V
Max Input Capacitance 460pF @ 15V
Maximum Power Dissipation 1.4W
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 8-DFN-EP (3x3)
Win Source Part Number 113341-AON7932
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AON7932 CAD Model

Description

Product Overview

The AON7932 is a cutting-edge power MOSFET known for its exceptional efficiency and versatile performance in high-power applications. Its design advances the capability of modern power systems significantly.

Features and Benefits

  • Excellent thermal resistance
  • Fast switching speeds
  • Reduced power loss enhances system longevity

Applications

  • Renewable energy systems
  • Computing power supplies
  • Industrial control systems
