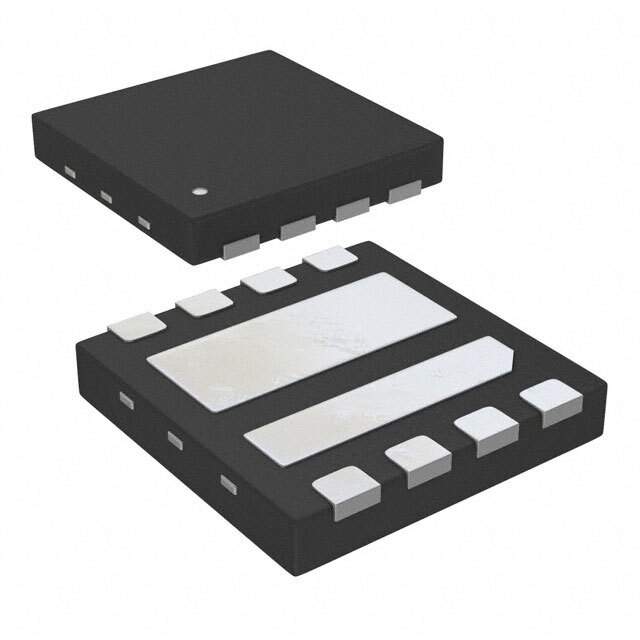

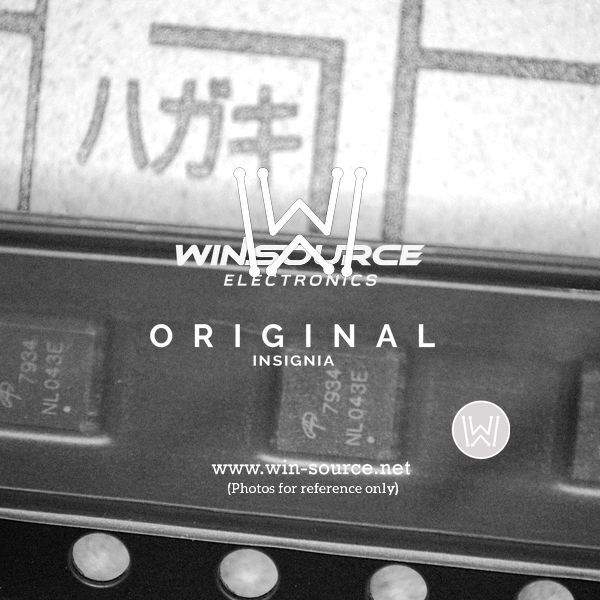

Same model may have multiple batches, images only for reference.

AON7934

Name: AON7934
Brand: Alpha & Omega Semiconductor Inc.
SKU: 431731
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	AON7934
Manufacturer	Alpha & Omega Semiconductor Inc.
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET 2N-CH 30V 13A/15A 8DFN
Datasheet	AON7934 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Alpha & Omega Semiconductor Inc.
Packaging	Reel - TR
Status	Active
FET Type	2 N-Channel (Half Bridge)
FET Feature	Logic Level Gate
Drain-Source Breakdown Voltage	30V
Continuous Drain Current at 25°C	13A, 15A
Maximum Rds On at Id,Vgs	10.2 mOhm @ 13A, 10V
Gate-Source Threshold Voltage	2.2V @ 250μA
Max Gate Charge	11nC @ 10V
Max Input Capacitance	485pF @ 15V
Maximum Power Dissipation	2.5W
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	SMD (SMT)
Case / Package	8-DFN-EP (3x3)
Win Source Part Number	1017160-AON7934
Family Name	AON7934
Introduction Date	June 26, 2012
ECCN	EAR99
Country of Origin	China
Halogen Free	Compliant
Estimated EOL Date	2022
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Sufficient
Application Field	Used in Industrial, Power Management, Computers & Computer Peripherals
Ultra Librarian 3D Model	Ultra Librarian AON7934 CAD Model

Alternative Products

Description

The Alpha & Omega Semiconductor Inc. AON7934 is a high popularity electronic component with a sufficient supply and demand status.

Manufacturer: Alpha & Omega Semiconductor Inc.
Popularity: High
Supply and Demand Status: Sufficient
FET Type: 2 N-Channel (Half Bridge)
Gate Feature: Logic level gate
Applications: Industrial, power management, computers, and computer peripherals
