Same model may have multiple batches, images only for reference.

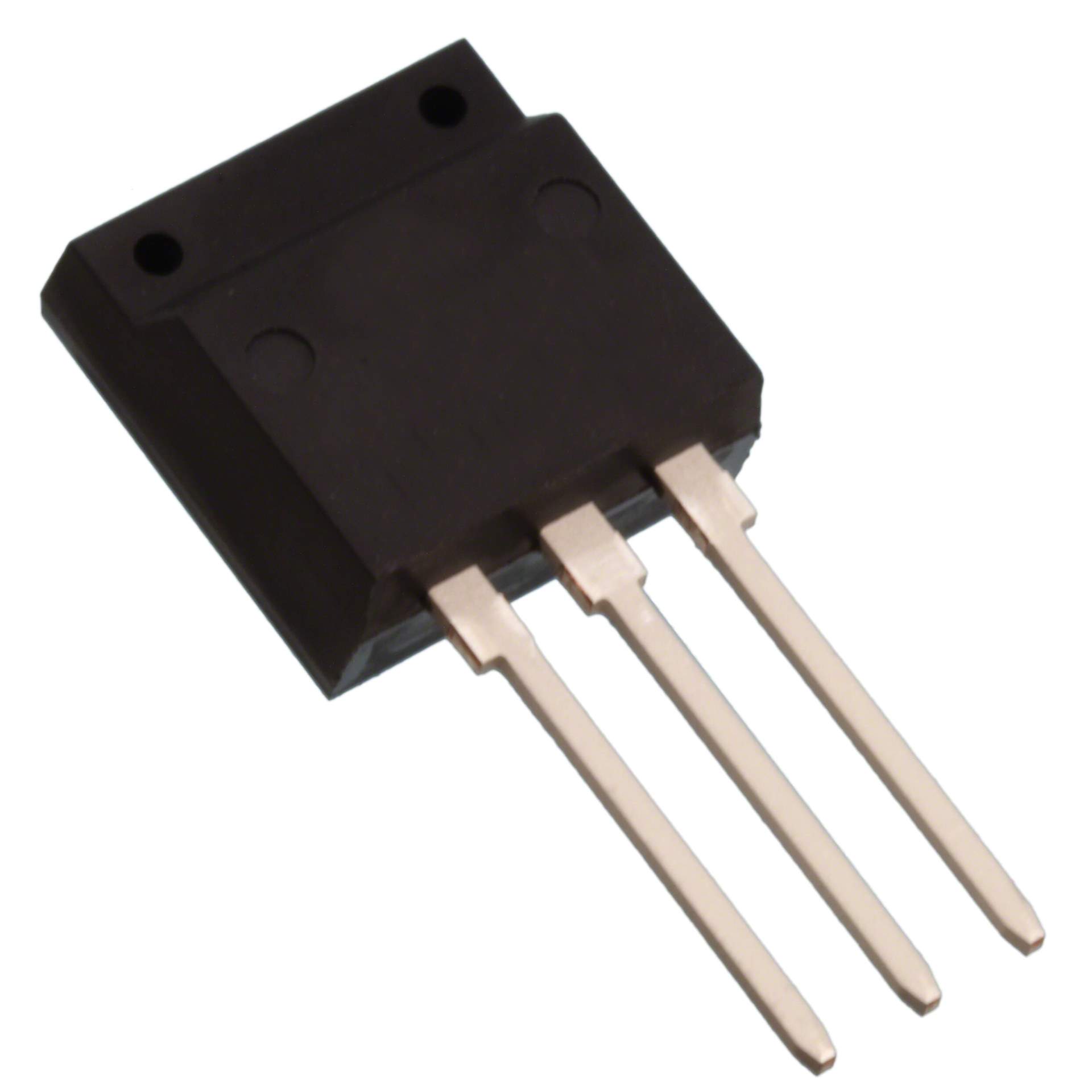

AOWF11N70 Real Image
Same model may have multiple batches, images only for reference.

AOWF11N70

Part No AOWF11N70
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 700V 11A TO262F
Datasheet
AOWF11N70 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Tube/Rail
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 700V
Continuous Drain Current at 25°C 11A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 4.5V @ 250μA
Max Gate Charge 45nC @ 10V
Max Input Capacitance 2150pF @ 25V
Maximum Gate-Source Voltage ±30V
Power Dissipation (Max) 28W (Tc)
Maximum Rds On at Id,Vgs 870 mOhm @ 5.5A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Dimension TO-262-3 Long Leads, I2Pak, TO-262AA
Win Source Part Number 1017324-AOWF11N70
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AOWF11N70 CAD Model

Description

The AOWF11N70 is an N-channel MOSFET from Alpha & Omega Semiconductor Inc. with a power dissipation of 28W (Tc) and a drain-source breakdown voltage of 700V.

  • Manufacturer: Alpha & Omega Semiconductor Inc.
  • Channel Type: N-channel
  • Power Dissipation: 28W (Tc)
  • Drain-Source Breakdown Voltage: 700V
  • Continuous Drain Current: 11A (Tc) @ 25°C
  • Gate-Source Threshold Voltage: 4.5V @ 250μA
  • Maximum Gate Charge: 45nC @ 10V
  • Maximum Input Capacitance: 2150pF @ 25V
  • Maximum Rds On @ Id,Vgs: 870 mOhm @ 5.5A, 10V
  • Drive Voltage: 10V
  • Mounting: Through-Hole
  • Dimension: TO-262-3 Long Leads, I2Pak, TO-262AA
  • Category: Discrete Semiconductor Products
  • Supply and Demand Status: Balanced
