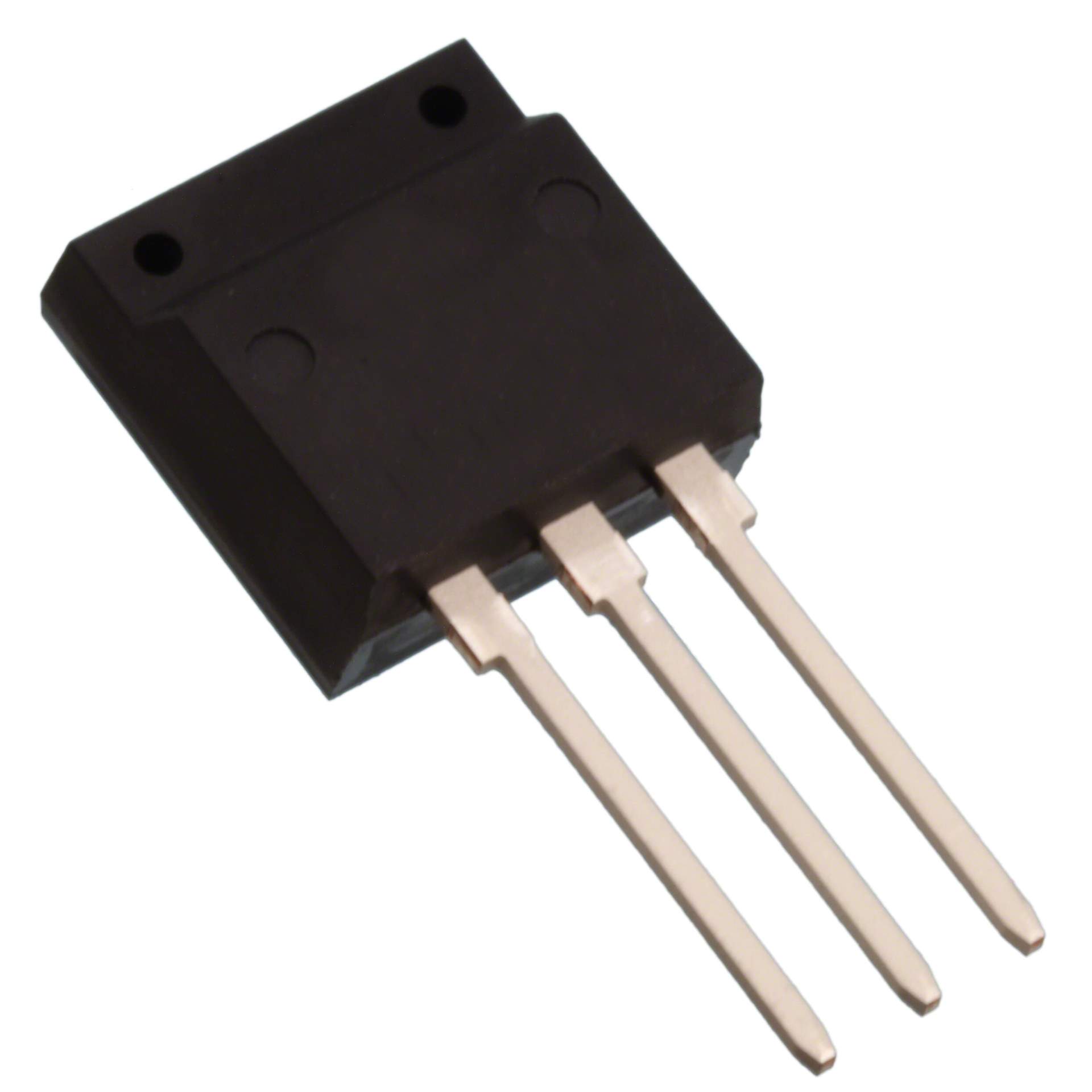

Same model may have multiple batches, images only for reference.

AOWF15S65

Name: AOWF15S65
Brand: Alpha & Omega Semiconductor Inc.
SKU: 431901
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	AOWF15S65
Manufacturer	Alpha & Omega Semiconductor Inc.
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 650V 15A TO262F
Datasheet	AOWF15S65 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Alpha & Omega Semiconductor Inc.
Packaging	Tube/Rail
Status	Active
Polarity	N-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	650V
Continuous Drain Current at 25°C	15A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Gate-Source Threshold Voltage	4V @ 250μA
Max Gate Charge	17.2nC @ 10V
Max Input Capacitance	841pF @ 100V
Maximum Gate-Source Voltage	±30V
Power Dissipation (Max)	28W (Tc)
Maximum Rds On at Id,Vgs	290 mOhm @ 7.5A, 10V
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	Through Hole
Dimension	TO-262-3 Long Leads, I2Pak, TO-262AA
Win Source Part Number	1017330-AOWF15S65
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian AOWF15S65 CAD Model

Alternative Products

Description

The Alpha & Omega Semiconductor Inc. AOWF15S65 is a N-channel MOSFET designed for use in discrete semiconductor products.

Drain-Source Breakdown Voltage: 650V
Continuous Drain Current: 15A (Tc)
Gate-Source Threshold Voltage: 4V @ 250μA
Maximum Gate Charge: 17.2nC @ 10V
Package: TO-262
Operating Temperature Range: -55°C to 150°C (TJ)
Maximum Power Dissipation: 28W (Tc)
Maximum Rds On @ Id,Vgs: 290 mOhm @ 7.5A, 10V
Popularity: Medium
Supply and Demand: Balanced
