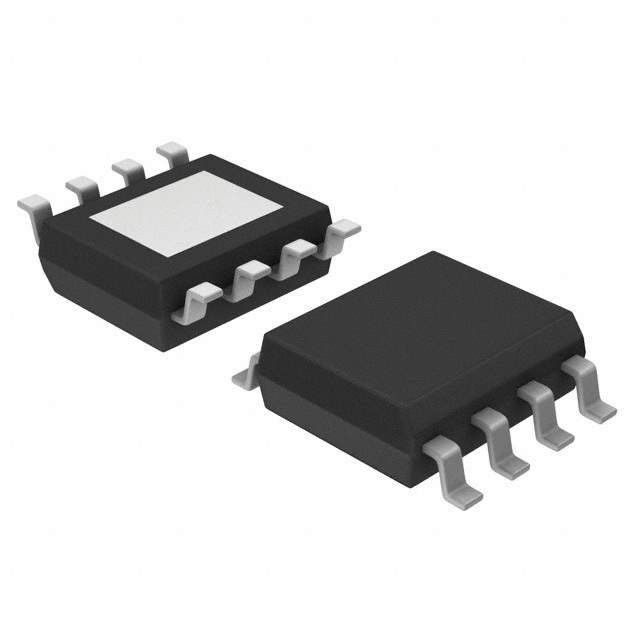

AOZ2003PI Real Image
Same model may have multiple batches, images only for reference.

AOZ2003PI

Part No AOZ2003PI
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR POS ADJ 3A 8SO
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel
Part Status Obsolete (End Of Life)
Output Configuration Positive
Output Type Adjustable
Number of Regulators 1
Maximum Input Voltage 5.5V
Voltage - Output (Min/Fixed) 1V
Maximum Output Voltage 5.15V
Maximum Dropout Voltage 0.35V at 3A
Current - Output 3A
Current - Quiescent (Iq) 1mA
Control Features Enable, Power Good
Protection Features Over Current, Over Temperature, Power On Reset (POR), Soft Start
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 8-SOIC Exposed Pad
Supplier Device Package 8-SO-EP
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 811077-AOZ2003PI
Ultra Librarian 3D Model Ultra Librarian AOZ2003PI CAD Model

Description

The Alpha & Omega Semiconductor Inc. AOZ2003PI is an adjustable output type regulator that has a maximum output voltage of 5.15V. It has a maximum input voltage of 5.5V and a current output of 3A. The package type is 8-SOIC Exposed Pad and it comes in a reel package of 3,000 units. The temperature range for operation is -40°C ~ 85°C. The supply and demand status for this product is currently limited. The regulator has protection features such as over current, over temperature, power on reset (POR), and soft start. This product is obsolete (end of life) and has an MSL level of 1 (unlimited).

  • Maximum Output Voltage: 5.15V
  • Maximum Input Voltage: 5.5V
  • Current Output: 3A
  • Operating Temperature: -40°C ~ 85°C
