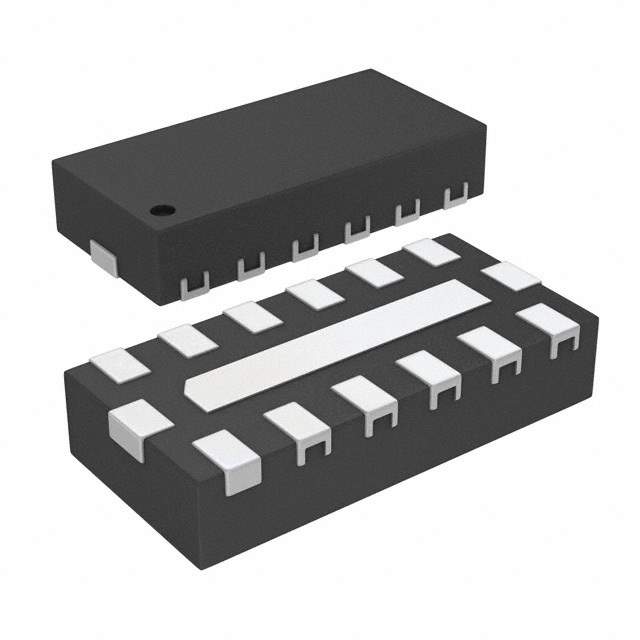

Same model may have multiple batches, images only for reference.

AOZ8025DI

Name: AOZ8025DI
Brand: Alpha & Omega Semiconductor Inc.
SKU: 431977
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	AOZ8025DI
Manufacturer	Alpha & Omega Semiconductor Inc.
Catalog	EMI/RFI Filters (LC, RC Networks)
Description	FILTER RC(PI) 100 OHM/9PF SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Filters
Manufacturer	Alpha & Omega Semiconductor Inc.
Packaging	Reel - TR
Status	Obsolete(EOL)
Type	Low Pass
Filter Order	2nd
Technology	RC (Pi)
Number of Channels	6
Center / Cutoff Frequency	250MHz (Cutoff)
Attenuation Value	-20dB @ 1GHz to 3GHz
Resistance - Channel (Ohms)	100
Current	20mA
Values	R = 100 Ohms, C = 9pF
ESD Protection	Yes
Temperature Range - Operating	-40°C to 85°C
Applications	Data Lines for Mobile Devices
Voltage Rating	5V
Mounting	SMD (SMT)
Dimension	0.118" L x 0.053" W (3.00mm x 1.35mm)
Height	0.022" (0.55mm)
Win Source Part Number	1017406-AOZ8025DI
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian AOZ8025DI CAD Model

Alternative Products

Description

The Alpha & Omega Semiconductor Inc. AOZ8025DI is a low-pass filter designed for data lines in mobile devices.

Voltage Rating: 5V
Current Rating: 20mA
Channels: 6
Attenuation: -20dB @ 1GHz to 3GHz
Filter Order: 2nd
Center/Cutoff Frequency: 250MHz (Cutoff)
Resistance - Channel (Ohms): 100
Values: R = 100 Ohms, C = 9pF
ESD Protection: Yes
Height: 0.022" (0.55mm)
Mounting Type: Surface Mount
Packaging: Reel - TR
Technology: RC (Pi)
Category: Filters
Supply and Demand: Balanced
