Same model may have multiple batches, images only for reference.

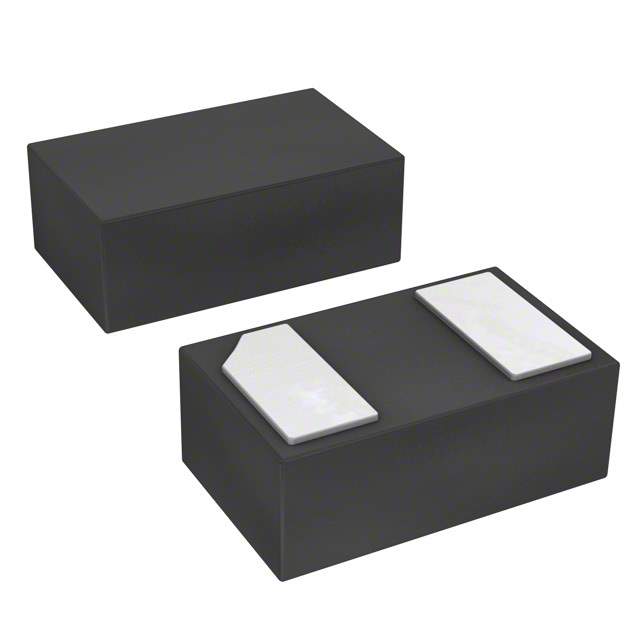

AOZ8211DI-02 Real Image
Same model may have multiple batches, images only for reference.

AOZ8211DI-02

Part No AOZ8211DI-02
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog TVS - Diodes
Description 0ne-line TVS Diode
Datasheet
AOZ8211DI-02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 2.5V (Maximum)
Minimum Breakdown Voltage 2.8V
Maximum Clamping Voltage 9.5V
Current - Peak Pulse (10/1000μs) 6A (8/20μs)
Power - Peak Pulse 50W
Power Line Protection No
Applications General
Capacitance @ Frequency 11pF @ 1MHz
Operating Temperature Range -40°C ~ 85°C (TJ)
Mounting SMD
Package 0402 (1006 Metric)
Manufacturer Package 2-DFN (1x0.6)
Win Source Part Number 1145113-AOZ8211DI-02
Manufacturer Homepage www.aosmd.com
Family Name AOZ8211DI-02
Introduction Date September 05, 2006
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2023
Popularity Medium
Supply and Demand Status Balance
Quantity per package 10k pcs
Ultra Librarian 3D Model Ultra Librarian AOZ8211DI-02 CAD Model

Description

The AOZ8211DI-02 is a zener that is available in reel - TR packaging from Alpha & Omega Semiconductor Inc..

  • Category: Circuit Protection
  • Popularity: Medium
  • Quantity per Package: 10k pcs
  • Breakdown Voltage: 2.8V
  • Maximum Clamping Voltage: 9.5V
  • Halogen Free: Yes
