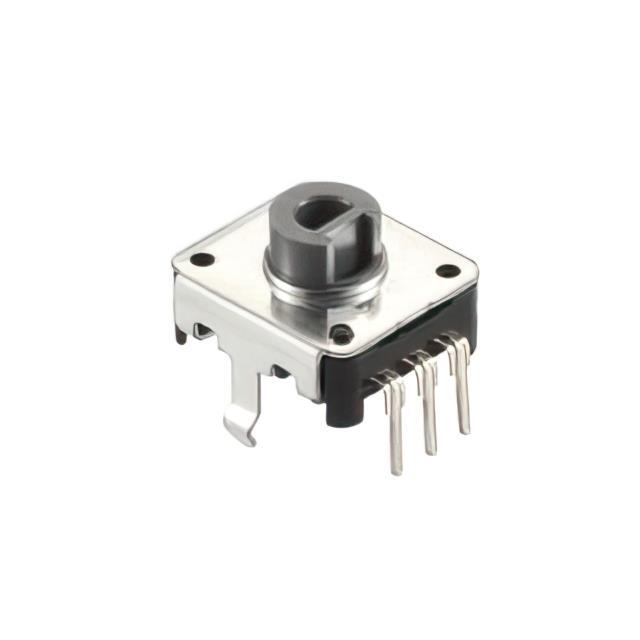

EC40A1520403 ALPS Electric – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

EC40A1520403

Part No EC40A1520403
Manufacturer ALPS Electric
Catalog Encoders
Description ENCODER MECH QUAD VERT PC PIN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Encoder Type Mechanical
Output Type Quadrature (Incremental)
Pulses per Revolution 15
Voltage - Supply 5V
Actuator Type 40mm Open Center
Detent Yes
Built in Switch No
Mounting Type PCB, Through Hole
Orientation Vertical
Termination Style PC Pin
Rotational Life (Cycles Min) 30K
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1548046-EC40A1520403
Ultra Librarian 3D Model Ultra Librarian EC40A1520403 CAD Model

Description
