Same model may have multiple batches, images only for reference.

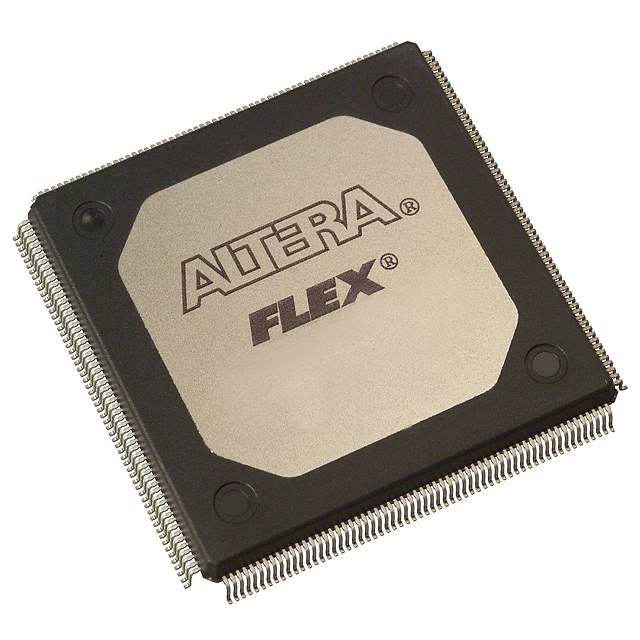

EPF10K100ARC240-1N Real Image
Same model may have multiple batches, images only for reference.

EPF10K100ARC240-1N

Part No EPF10K100ARC240-1N
Manufacturer Altera
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 189 I/O 240RQFP / FPGA FLEX 10KA Family 100K Gates 4992 Cells 200MHz 0.3um Technology 3.3V 240-Pin RQFP
Datasheet
EPF10K100ARC240-1N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Altera
Series FLEX-10KA
Part Status Obsolete(EOL)
Number of LABs/CLBs 624
Number of Logic Elements/Cells 4992
Total RAM Bits 24576
Number of I/O 189
Number of Gates 158000
Operating Supply Voltage 3 V ~ 3.6 V
Mounting SMD
Operating Temperature Range 0°C ~ 70°C (TA)
Package 240-BFQFP Exposed Pad
Manufacturer Package 240-RQFP (32x32)
Win Source Part Number 774006-EPF10K100ARC240-1N
Popularity Medium
Supply and Demand Status Limited
Family Name EPF10K100A
Introduction Date May 22, 2000
ECCN 3A991
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian EPF10K100ARC240-1N CAD Model

Description

The Altera FLEX-10KA series from Altera integrated circuit is a high-performance FPGA that operates in the temperature range of 0°C to 70°C.

  • Package / Case: 240-BFQFP Exposed Pad
  • Mounting Type: SMD
  • Operating Supply Voltage: 3 V to 3.6 V
  • I/O: 189
  • LABs/CLBs: 624
  • Logic Elements/Cells: 4992
  • RAM: 24576
  • Gates: 158000
  • Family: EPF10K100A
  • Manufacturer Package: 240-RQFP (32x32)
  • Compliance: Halogen-free
