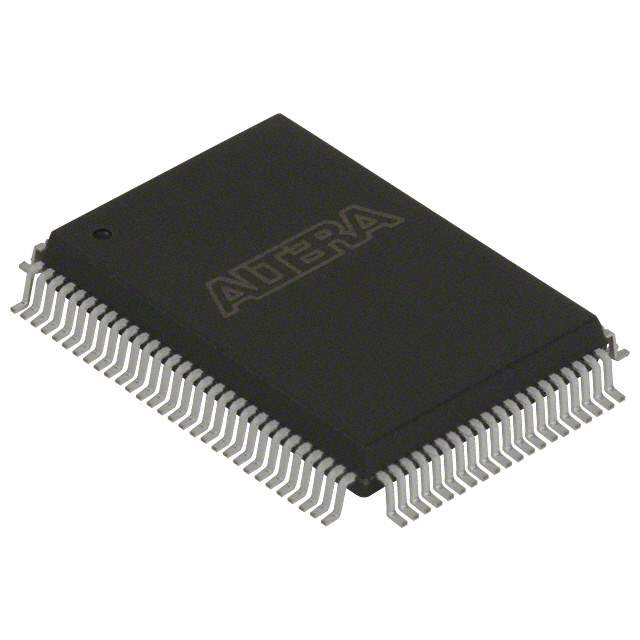

EPM7160EQC100-15 Real Image
Same model may have multiple batches, images only for reference.

EPM7160EQC100-15

Part No EPM7160EQC100-15
Manufacturer Altera
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description IC CPLD 160MC 15NS 100QFP / CPLD MAX® 7000 Family 3.2K Gates 160 Macro Cells 76.9MHz 5V 100-Pin PQFP Tray
Datasheet
EPM7160EQC100-15 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Altera
Series MAX 7000
Packaging Tray
Part Status Obsolete(EOL)
Programmable Type EE PLD
Delay Time tpd(1) Max 15.0ns
Voltage Supply - Internal 4.75 V ~ 5.25 V
Number of Logic Elements/Blocks 10
Number of Macrocells 160
Number of Gates 3200
Number of I/O 84
Operating Temperature Range 0°C ~ 70°C (TA)
Mounting SMD
Package 100-BQFP
Manufacturer Package 100-PQFP (14x20)
Win Source Part Number 774169-EPM7160EQC100-15
Popularity Medium
Supply and Demand Status Limited
Quantity per package 66
Family Name EPM7160E
Introduction Date October 02, 1998
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian EPM7160EQC100-15 CAD Model

Description

The Altera EPM7160EQC100-15 is a MAX 7000 series EE PLD from Altera.

  • Package: 100-BQFP
  • I/Os: 84
  • Programmability: In-system
  • Gates: 3200
  • Delay Time (tpd(1) max): 15.0ns
  • Voltage Supply: 4.75 V to 5.25 V (internal)
  • Logic Elements/Blocks: 10
  • Macrocells: 160
  • Family: EPM7160E
  • Operating Temperature: 0°C to 70°C (TA)
  • Status: Obsolete (EOL)
  • Compliance: Halogen-free
