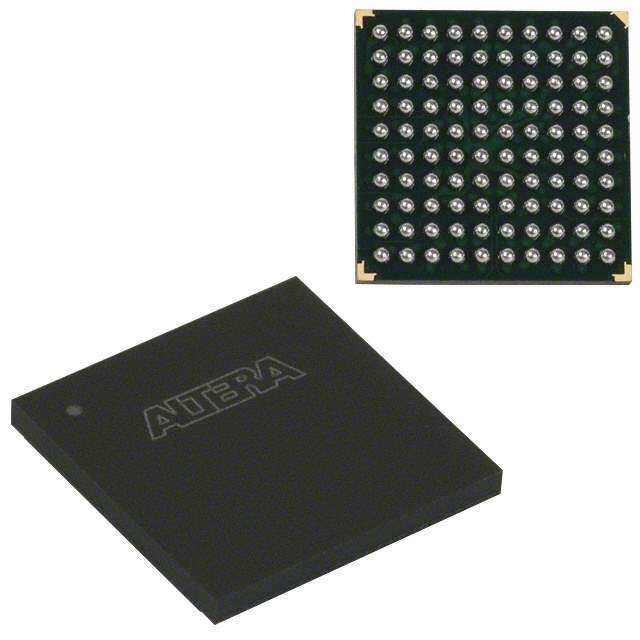

EPM7256AEFC100-10

Part No EPM7256AEFC100-10
Manufacturer Altera
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description IC CPLD 256MC 10NS 100FBGA
Datasheet
EPM7256AEFC100-10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Altera
Series MAX 7000A
Packaging Tray
Programmable Type In System Programmable
Delay Time tpd(1) Max 10.0ns
Voltage Supply - Internal 3 V ~ 3.6 V
Number of Logic Elements/Blocks 16
Number of Macrocells 256
Number of Gates 5000
Number of I/O 84
Operating Temperature Range 0°C ~ 70°C (TA)
Mounting SMD
Package 100-LBGA
Manufacturer Package 100-FBGA (11x11)
Manufacturer Homepage www.altera.com
Win Source Part Number 730773-EPM7256AEFC100-10
Popularity Medium
Supply and Demand Status Limited
Family Name EPM7256AE
Introduction Date October 08, 1998
ECCN EAR99
Country of Origin Republic of Korea
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian EPM7256AEFC100-10 CAD Model

Description

The MAX 7000A series programmable integrated circuit (IC) Altera EPM7256AEFC100-10, manufactured by Altera, comes in a 100-LBGA package.

  • Package: 100-LBGA
  • Input/Output Pins: 84
  • Logic Elements/Blocks: 16
  • Macrocells: 256
  • Programmable Type: In System Programmable
  • Delay Time tpd(1) max: 10.0ns
  • Internal Voltage Supply: 3 V to 3.6 V
  • Gates: 5000
  • Mounting: Surface Mount Technology (SMT)
  • Halogen-Free: Yes
  • Supply and Demand Status: Limited supply
  • EOL Date: 2024 (estimated)
