Same model may have multiple batches, images only for reference.

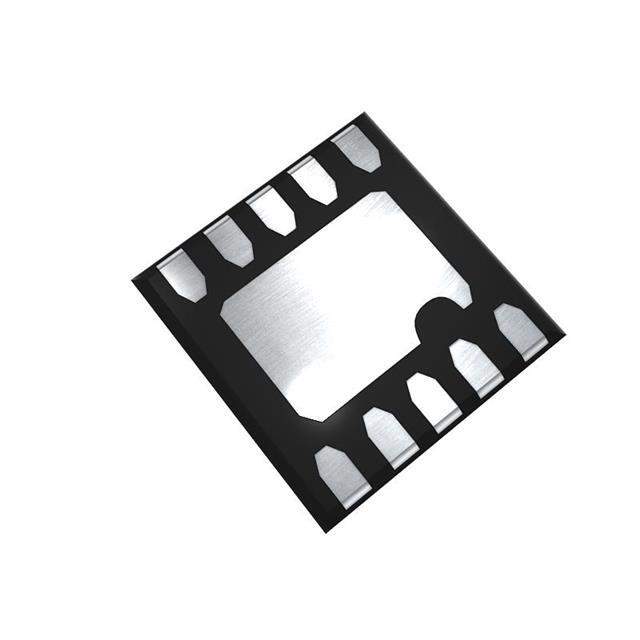

AZ3133-04F Real Image
Same model may have multiple batches, images only for reference.

AZ3133-04F

Part No AZ3133-04F
Manufacturer Amazing
Catalog TVS - Diodes
Description TVS SURGE PROTECTOR 4-CH 3.3V / Clamp Ipp Tvs Diode Surface Mount DFN2525P10E
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Amazing
Package Cut Tape (CT)
Type Zener
Bidirectional Channels 4
Voltage - Reverse Standoff (Typ) 3.3V (Max)
Voltage - Breakdown (Min) 3.9V
Power Line Protection No
Applications Ethernet
Temperature Range - Operating -55°C ~ 125°C (TC)
Mounting SMD (SMT)
Package / Case 10-UFDFN Exposed Pad
Supplier Device Package DFN2525P10E
REACH Status Vendor Undefined
Other Names 4430-AZ3133-04FTR,4430-AZ3133-04FTR-ND,4430-AZ3133-04FCT
Win Source Part Number 1186810-AZ3133-04F
Ultra Librarian 3D Model Ultra Librarian AZ3133-04F CAD Model

Description

The Amazing AZ3133-04F is a Zener type TVS diode that is perfect for use in Ethernet applications.

  • Voltage - Reverse Standoff (Typ): 3.3V (Max)
  • Voltage - Breakdown (Min): 3.9V
  • Channels: 4, bidirectional
  • Package: 10-UFDFN Exposed Pad
  • Temperature Range - Operating: -55°C ~ 125°C (TC)
