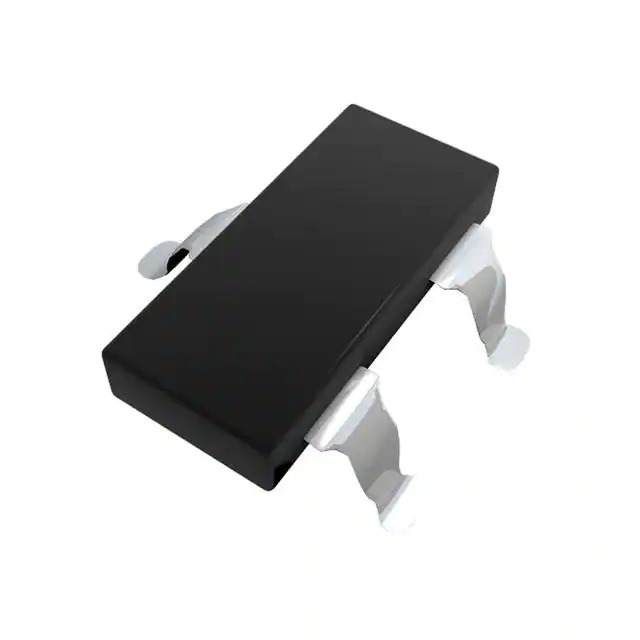

Same model may have multiple batches, images only for reference.
AZC199-02S Amazing
Same model may have multiple batches, images only for reference.

AZC199-02S

Part No AZC199-02S
Manufacturer Amazing
Catalog TVS - Diodes
Description LOW CAP ESD PROTECTION 2-CH 5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Amazing
Series -
Package Strip
Product Status Active
Type Zener
Unidirectional Channels 2
Voltage - Reverse Standoff (Typ) 5V (Max)
Voltage - Breakdown (Min) 7V
Voltage - Clamping (Max) @ Ipp -
Current - Peak Pulse (10/1000µs) -
Power - Peak Pulse -
Power Line Protection No
Applications USB
Capacitance @ Frequency -
Temperature Range - Operating -55°C ~ 85°C (TC)
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT23-3L
REACH Status Vendor Undefined
Win Source Part Number 1377938-AZC199-02S
Ultra Librarian 3D Model Ultra Librarian AZC199-02S CAD Model

Description

The Amazing Zener TVS Diode is a circuit protection device that is commonly used in USB applications. Bold the product name (e.g., BAV99S,135 → Amazing Zener TVS Diode) and manufacturer (e.g., Nexperia USA Inc. → Amazing Zener).

  • Application: USB
  • Voltage Reverse Standoff: 5V
  • Minimum Breakdown Voltage: 7V
  • Mounting Type: Surface Mount
  • Package: TO-236-3, SC-59, SOT-23-3
  • Diode Type: Zener
  • Product Status: Active
  • Package Type: SOT23-3L
  • Description: Provides excellent protection against transient voltage spikes.
