Same model may have multiple batches, images only for reference.

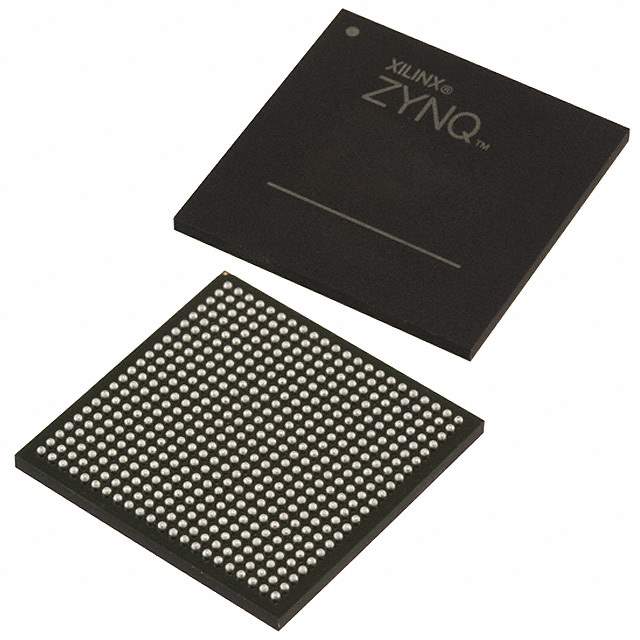

XC7Z012S-2CLG485I Real Image
Same model may have multiple batches, images only for reference.

XC7Z012S-2CLG485I

Part No XC7Z012S-2CLG485I
Manufacturer Amd
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC SOC CORTEX-A9 766MHZ 485CSBGA  /  Single ARM® Cortex®-A9 MPCore™ with CoreSight™ System On Chip (SOC) IC series Artix™-7 FPGA, 55K Logic Cells 766MHz 485-CSPBGA (19x19)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - System On Chip (SoC)
Mfr AMD Xilinx
Series Zynq®-7000
Package Tray
Architecture MCU, FPGA
Core Processor Single ARM® Cortex®-A9 MPCore™ with CoreSight™
RAM Size 256KB
Peripherals DMA
Connectivity CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
Speed 766MHz
Primary Attributes Artix™-7 FPGA, 55K Logic Cells
Temperature Range - Operating -40°C ~ 100°C (TJ)
Package / Case 485-LFBGA, CSPBGA
Supplier Device Package 485-CSPBGA (19x19)
Number of I/O 150
Base Product Number XC7Z012
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8542.39.0001
Other Names 122-2006
Standard Package 84
Win Source Part Number 1030883-XC7Z012S-2CLG485I
Ultra Librarian 3D Model Ultra Librarian XC7Z012S-2CLG485I CAD Model

Description

The XC7Z012S-2CLG485I is a highly efficient integrated circuit that belongs to the Zynq-7000 series.

  • Core Processor: single ARM Cortex-A9 MPCore™ with CoreSight™
  • Core Processor Speed: 766MHz
  • Supply and Demand Status: balance
  • Package: tray
  • Standard Package: 84
  • Connectivity: CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, and USB OTG
  • Peripherals: DMA
  • Number of I/Os: 150
  • RAM Size: 256KB
  • FPGA: Artix-7 FPGA with 55K logic cells
  • Temperature Range: -40°C to 100°C (TJ)
  • Manufacturer: AMD Xilinx
  • Win Source Part Number: 1030883-XC7Z012S-2CLG485I
