Same model may have multiple batches, images only for reference.

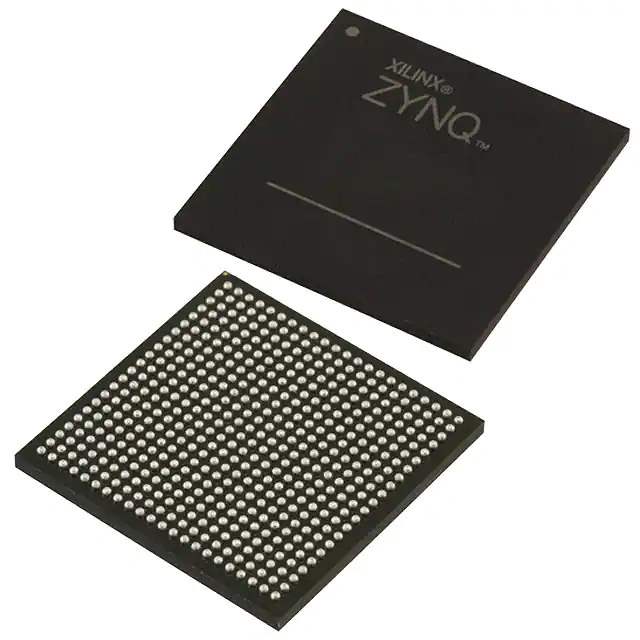

XC7Z020-2CLG484E Real Image
Same model may have multiple batches, images only for reference.

XC7Z020-2CLG484E

Part No XC7Z020-2CLG484E
Manufacturer Amd
Catalog Embedded - System On Chip (SoC)
Description IC SOC CORTEX-A9 766MHZ 484BGA / Dual ARM? Cortex?-A9 MPCore? with CoreSight? System On Chip (SOC) IC Zynq?-7000 Artix?-7 FPGA, 85K Logic Cells 766MHz 484-CSPBGA (19x19)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - System On Chip (SoC)
Mfr AMD
Series Zynq®-7000
Package Tray
Product Status Active
Architecture MCU, FPGA
Core Processor Dual ARM® Cortex®-A9 MPCore™ with CoreSight™
RAM Size 256KB
Peripherals DMA
Connectivity CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
Speed 766MHz
Primary Attributes Artix™-7 FPGA, 85K Logic Cells
Temperature Range - Operating 0°C ~ 100°C (TJ)
Package / Case 484-LFBGA, CSPBGA
Supplier Device Package 484-CSPBGA (19x19)
Number of I/O 130
Base Product Number XC7Z020
Standard Package 84 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8542.39.0001
Win Source Part Number 852516-XC7Z020-2CLG484E
Ultra Librarian 3D Model Ultra Librarian XC7Z020-2CLG484E CAD Model

Description

The XC7Z020-2CLG484E is a Zynq-7000 SoC from AMD.

  • Processor: Dual ARM Cortex-A9 MPCore with CoreSight
  • Speed: 766MHz
  • Connectivity: CANbus, Ethernet, USB OTG, and more
  • I/O Pins: 130
  • FPGA: Artix-7 with 85K logic cells
  • Temperature Range: 0°C to 100°C
  • REACH: Compliant
