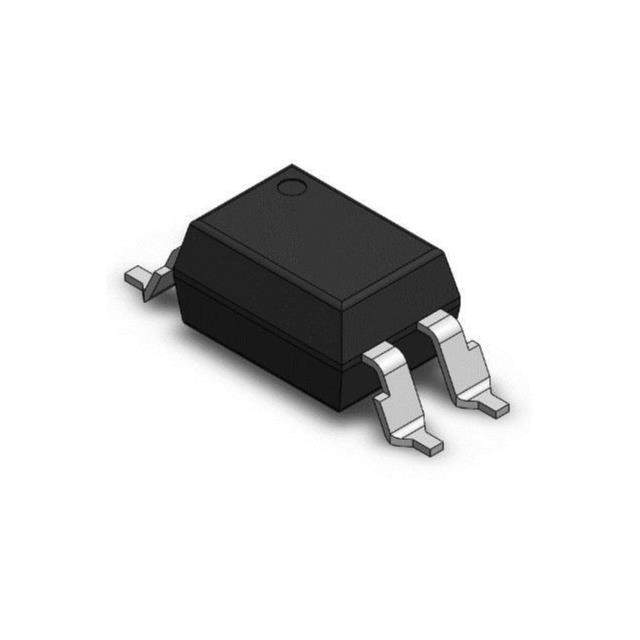

Same model may have multiple batches, images only for reference.

APC-817C1-SL

Name: APC-817C1-SL
Brand: American Bright Optoelectronics Corporation
SKU: 1084151
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	APC-817C1-SL
Manufacturer	American Bright Optoelectronics Corporation
Catalog	Optoisolators - Transistor, Photovoltaic Output
Description	DIP4, DC INPUT, PHOTO TRANSISTOR / Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD
Datasheet	APC-817C1-SL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Isolators>Optoisolators - Transistor, Photovoltaic Output
Mfr	American Bright Optoelectronics Corporation
Series	APC-817
Package	Cut Tape (CT),,Tube
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	200% @ 5mA
Current Transfer Ratio (Max)	400% @ 5mA
Rise / Fall Time (Typ)	3µs, 4µs
Input Type	DC
Output Type	Transistor
Voltage - Output (Max)	35V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.24V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	200mV
Temperature Range - Operating	-55°C ~ 110°C
Mounting	SMD (SMT)
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SMD
Base Product Number	APC-817
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.49.8000
Other Names	754-APC-817C1-SLDKR,754-APC-817C1-SLCT,754-APC-817C1-SL,2007-APC-817C1-SLCT,2007-APC-817C1-SLDKR,754-APC-817C1-SLDKR-ND,754-APC-817C1-SLCTINACTIVE-ND,2007-APC-817C1-SL-ND,754-APC-817C1-SLCT-ND,754-APC-817C1-SLDKRINACTIVE,754-APC-817C1-SLCTINACTIVE,754-APC-817C1-SLDKRINACTIVE-ND,2007-APC-817C1-SL,2007-APC-817C1-SLTR,754-APC-817C1-SL-ND
Standard Package	1,500
Win Source Part Number	1084151-APC-817C1-SL
Ultra Librarian 3D Model	Ultra Librarian APC-817C1-SL CAD Model

Alternative Products

Description

The APC-817C1-SL is an optoisolator transistor, photovoltaic output from American Bright Optoelectronics Corporation.

Win Source Part Number: 1084151-APC-817C1-SL
Package: cut tape or tube
Mounting: SMD (SMT)
Input Type: DC
Current - DC Forward (If) (Max): 60 mA
Voltage - Forward (Vf) (Typ): 1.24V
Rise/Fall Time: 3µs, 4µs
Current-Output/Channel: 50mA
Number of Channels: 1
Voltage-Isolation: 5000Vrms
Current Transfer Ratio (Min): 200% @ 5mA
Current Transfer Ratio (Max): 400% @ 5mA
Voltage Output (Max): 35V
Vce Saturation (Max): 200mV
RoHS3: compliant
ECCN: EAR99
Temperature Range: -55°C ~ 110°C
Package: 4-SMD, gull-wing
