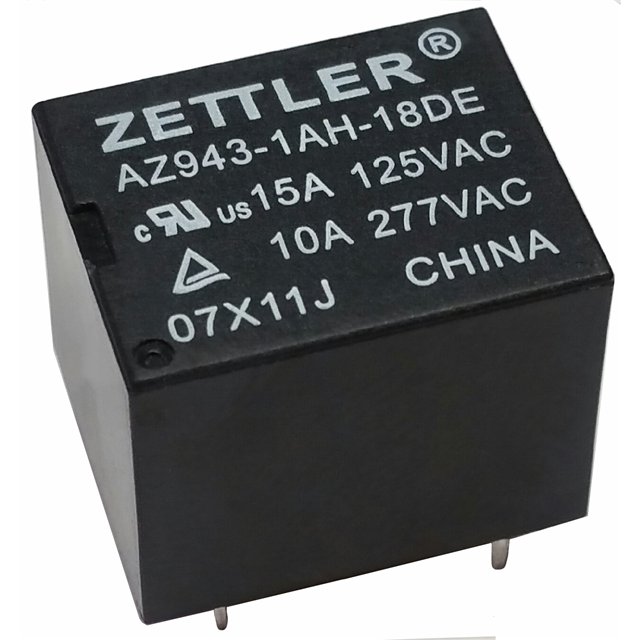

AZ943-1CH-12DE Real Image
Same model may have multiple batches, images only for reference.

AZ943-1CH-12DE

Part No AZ943-1CH-12DE
Manufacturer American Zettler, Inc.
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 10A 12V / General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
Datasheet
AZ943-1CH-12DE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Manufacturer American Zettler
Packaging Tube
Mounting Through Hole
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 10 A
Switching Voltage 277VAC, 30VDC - Max
Coil Current 30 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class B
Must Operate Voltage 9 VDC
Must Release Voltage 1.2 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 90°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 400 Ohms
Base Product Number AZ943
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Other Part Number 2487-AZ943-1CH-12DE-ND,3385-AZ943-1CH-12DE,2487-AZ943-1CH-12DE
Standard Package 25
Win Source Part Number 1323820-AZ943-1CH-12DE
Ultra Librarian 3D Model Ultra Librarian AZ943-1CH-12DE CAD Model

Description

The American Zettler AZ943-1CH-12DE relay is an SPDT relay with a coil voltage of 12VDC.

  • Contact Rating: 10A
  • Switching Voltage: 277VAC and 30VDC
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Coil Resistance: 400Ω
  • Temperature Range: -40°C to 90°C
  • Mounting Type: Through-Hole
  • ROHS: Compliant
  • REACH: Unaffected
  • Seal Rating: Sealed, Fully Seal
  • Packaging Type: Tube
  • Ideal for: Use in power relays, over 2 amps, and general-purpose relays
