Same model may have multiple batches, images only for reference.

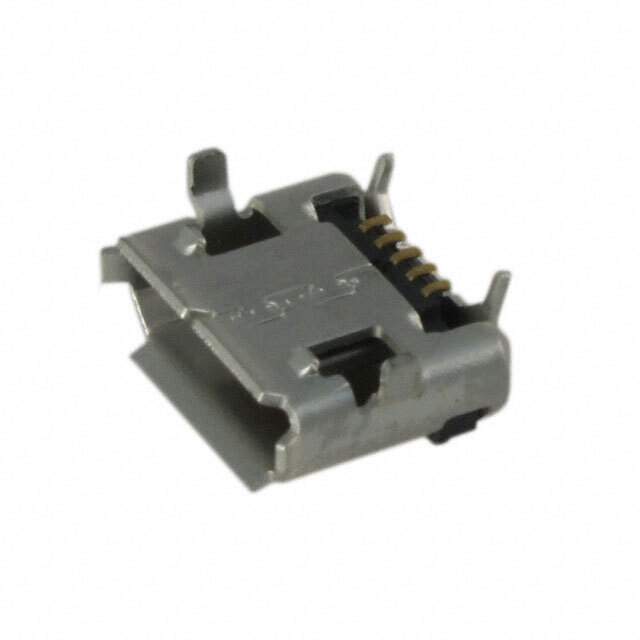

10103592-0001LF Real Image
Same model may have multiple batches, images only for reference.

10103592-0001LF

Part No 10103592-0001LF
Manufacturer Amphenol FCI
Catalog USB, DVI, HDMI Connectors
Description MICRO-USB B-TYPE REVERSE | CONN RCPT USB2.0 MICRO B SMD R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol ICC (FCI)
Packaging Reel
Connector Type USB - micro B
Number of Contacts 5
Gender Receptacle
Specifications USB 2.0
Mounting Style SMT, Right Angle; Through Hole
Mounting Feature Horizontal, Reverse Mount
Termination Solder
Features Solder Retention
Temperature Range - Operating -30°C ~ 80°C
Number of Ports 1
Current Rating (Amps) 1.8A per Contact
Voltage - Rated 100VAC
Mating Cycles 10000
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Steel, Stainless
Material Flammability Rating UL94 V-0
Insulation Color Black
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1120971-10103592-0001LF
Manufacturer Homepage www.fciconnect.com
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Communications & Networking, Audio, Power Management, Imaging, Video & Vision, Portable Devices
Ultra Librarian 3D Model Ultra Librarian 10103592-0001LF CAD Model

Description

The Amphenol ICC (FCI) 1120971-10103592-0001LF is a USB micro-B connector with 5 contacts and a gold contact finish.

  • Type: USB micro-B connector
  • Contacts: 5
  • Contact Finish: Gold
  • Shielded: Yes
  • Voltage Rating: 100VAC
  • Mounting Style: Surface mountable and through-hole mountable with a right-angle mounting style
  • Mount Feature: Horizontal and reverse mount
  • Current Rating: 1.8A per contact
  • Suitable for: Communications and networking, audio, power management, imaging, video and vision, and portable devices
  • Mating Cycle: 10000
  • Temperature Range: -30°C to 80°C
