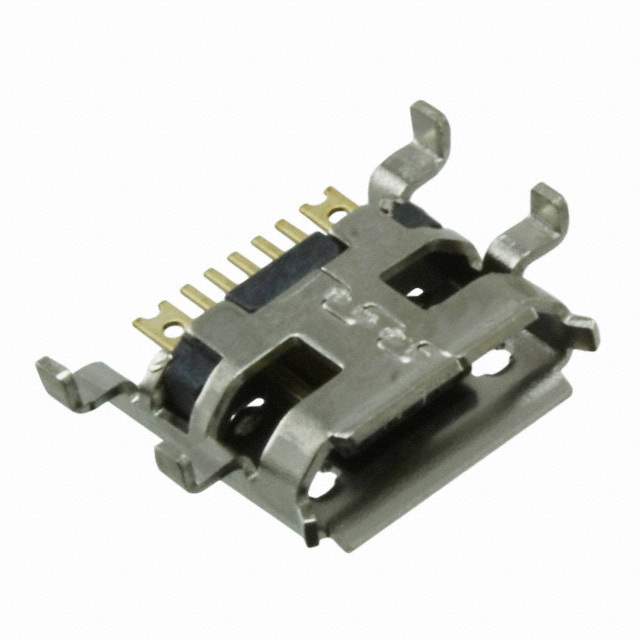

10103593-0001LF Real Image
Same model may have multiple batches, images only for reference.

10103593-0001LF

Part No 10103593-0001LF
Manufacturer Amphenol FCI
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT STD MICRO USB TYPE B
Datasheet
10103593-0001LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol FCI
Packaging Reel - TR
Status Active
Connector Type USB - micro B
Number of Contacts 5
Gender Receptacle
Specifications USB 2.0
Mounting Board Edge, Cutout; Surface Mount; Through Hole, Right Angle
Mounting Feature Horizontal, Mid Mount
Termination Solder
Features Solder Retention
Temperature Range - Operating -30°C to 80°C
Number of Ports 1
Current Rating 1.8A per Contact
Voltage Rating 100VAC
Mating Cycles 10000
Contact Finish Gold
Shell/Shielding Material Steel, Stainless
Material Flammability Rating UL94 V-0
Insulation Color Black
Win Source Part Number 1000816-10103593-0001LF
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Consumer Electronics, Portable Devices, Multimedia
Ultra Librarian 3D Model Ultra Librarian 10103593-0001LF CAD Model

Description

The Amphenol FCI 1000816-10103593-0001LF is a micro B USB connector with a 5-contact receptacle.

  • Applications: consumer electronics, portable devices, and multimedia applications
  • Voltage Rating: 100VAC
  • Current Rating: 1.8A per contact
  • Shielding Material: steel and stainless
  • Material Flammability Rating: UL94 V-0
  • Mounting: board edge, cutout, surface mount, or through hole right angle
  • Termination: solder
  • Contact Finish: gold
  • Mating Cycle: 10000
  • Operating Temperature Range: -30°C to 80°C
  • Packaging: reel
  • Solder Retention Feature: yes
