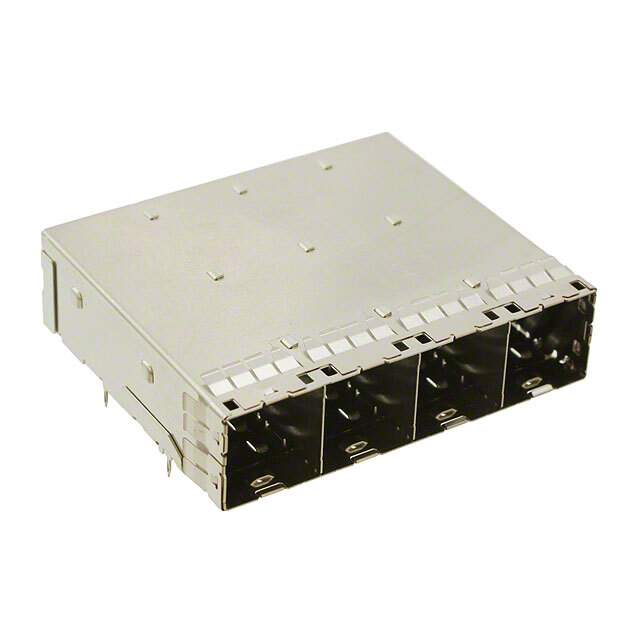

10112628-101LF Real Image
Same model may have multiple batches, images only for reference.

10112628-101LF

Part No 10112628-101LF
Manufacturer Amphenol FCI
Catalog Pluggable Connectors
Description MINI-SAS HD 1X4 EXT PCB CONNECT
Datasheet
10112628-101LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol FCI
Packaging Tray
Connector Style Receptacle with Cage, Ganged (1x4)
Connector Type SAS, Mini HD
Number of Positions 64 (16 x 4)
Mounting Through Hole, Right Angle
Termination Press-Fit
Features EMI Shielded
Contact Finish Gold
Contact Finish Thickness 30μin (0.76μm)
Win Source Part Number 760121-10112628-101LF
Popularity Medium
Supply and Demand Status Limited
Family Name 10112628
Introduction Date November 04, 2011
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian 10112628-101LF CAD Model

Description

The Amphenol FCI 760121-10112628-101LF is a SAS, Mini HD connector with 64 positions (16 x 4).

  • Features: EMI Shielded
  • Termination: Press-fit
  • Contact Finish: Gold
  • Contact Finish Thickness: 30μin (0.76μm)
  • Connector Type: Receptacle with Cage, Ganged (1x4)
  • Mounting Style: Through Hole, Right Angle
  • Family Name: 10112628
  • Applications: Connectors and Interconnects
  • Introduction Date: November 04, 2011
  • ECCN: EAR99
  • Country of Origin: China
  • EOL Date: Obsolete (Estimated)
  • Halogen-Free: Compliant
  • Popularity: Medium
