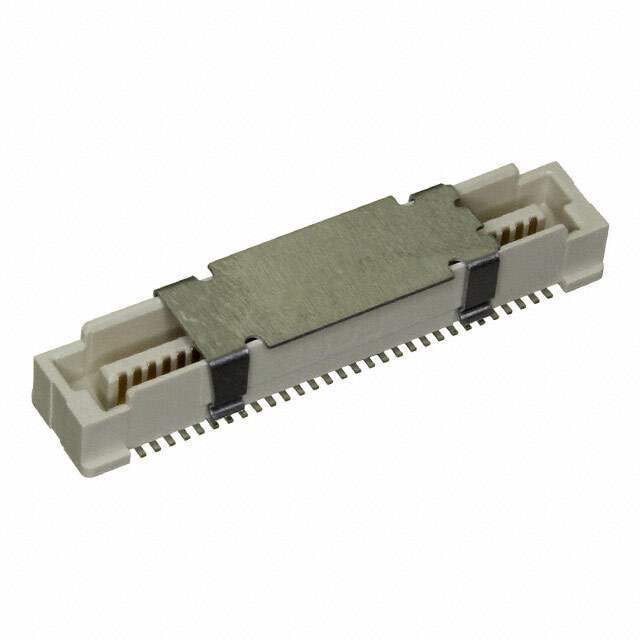

Same model may have multiple batches, images only for reference.

10144518-061802LF

Name: 10144518-061802LF
Brand: Amphenol FCI
SKU: WS1324527
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	10144518-061802LF
Manufacturer	Amphenol FCI
Catalog	Rectangular - Board to Board Connectors
Description	CONN PLUG 60POS SMD GOLD
Datasheet	10144518-061802LF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1324527-10144518-061802LF
Manufacturer	Amphenol ICC (FCI)
Category	Connectors, Interconnects > Rectangular Connectors > Arrays, Edge Type, Mezzanine (Board to Board)
Part Status	Active
Connector Type	Plug, Center Strip Contacts
Number of Positions	60
Pitch	0.031" (0.80mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Board Guide, Pick and Place
Contact Finish	Gold
Ultra Librarian 3D Model	Ultra Librarian 10144518-061802LF CAD Model

Description

Amphenol’s BergStak® Lite 0.8mm is a flexible solution designed for high speed and high density, parallel board-toboard connector system with 16 PCB stack heights in 4 sizes up to 100 positions.

● Housing and terminal profile guarantees support of up to 12Gb/s

● 40 to 100 position sizes in 20 position increments

● 5mm to 20mm stack heights in 1mm increments

● Gold flash plating on contact area supports 50 mating cycles for lower mating cycle application
