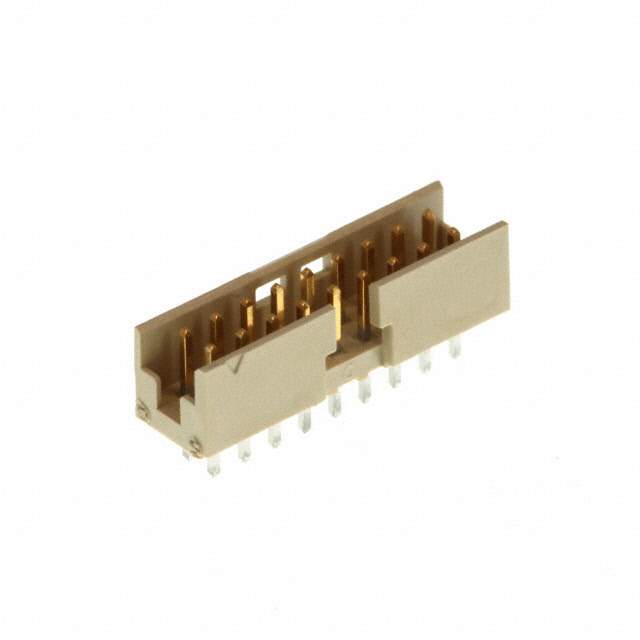

Name: 98414-G06-18ULF
Brand: Amphenol FCI
SKU: 766550
Availability: InStock
Rating: 4.93 (5 reviews)

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Amphenol FCI
Series	Minitek
Packaging	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting Style	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.157" (4.00mm)
Contact Length - Post	0.098" (2.50mm)
Insulation Height	0.232" (5.90mm)
Contact Shape	Square
Contact Finish - Mating	Gold, GXT
Contact Finish Thickness - Mating	30μin (0.76μm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Thermoplastic
Features	Keying Slot
Material Flammability Rating	UL94 V-0
Insulation Color	Cream
Contact Finish Thickness - Post	78.7μin (2.00μm)
Win Source Part Number	766550-98414-G06-18ULF
Popularity	Medium
Supply and Demand Status	Limited
Family Name	98414
Introduction Date	October 25, 2005
ECCN	EAR99
Country of Origin	France
Estimated EOL Date	2026
Ultra Librarian 3D Model	Ultra Librarian 98414-G06-18ULF CAD Model

Description

The Amphenol FCI 766550-98414-G06-18ULF connector from Amphenol FCI is a Minitek series header connector with male pins.

Packaging: Tube
Positions: 18 (loaded)
Termination: Solder
Pitch: 0.079 inch
Shrouding: Shrouded 4 wall
Fastening Type: Latch holder
Contact Material: Copper alloy
Contact Finish (Mating): Gold
Contact Finish (Post): Tin
Contact Finish Thickness (Mating): 30μin (0.76μm)
Contact Finish Thickness (Post): 78.7μin (2.00μm)
Insulation Color: Cream
Insulation Material: Thermoplastic
Insulation Rating: UL94 V-0
Row Spacing: 0.079 inches
Contact Length (Mating): 0.157 inches
Contact Length (Post): 0.098 inches
Contact Shape: Square
Insulation Height: 0.232 inches
Style: Board to board or cable
Keying Slot: Yes
Supply and Demand Status: Limited
Estimated EOL Date: 2026
Alternative Parts: B18B-PHDSS-B, B18B-PHDSS, 87831-1828
Introduction Date: October 25, 2005
Country of Origin: France
ECCN: EAR99
