Same model may have multiple batches, images only for reference.

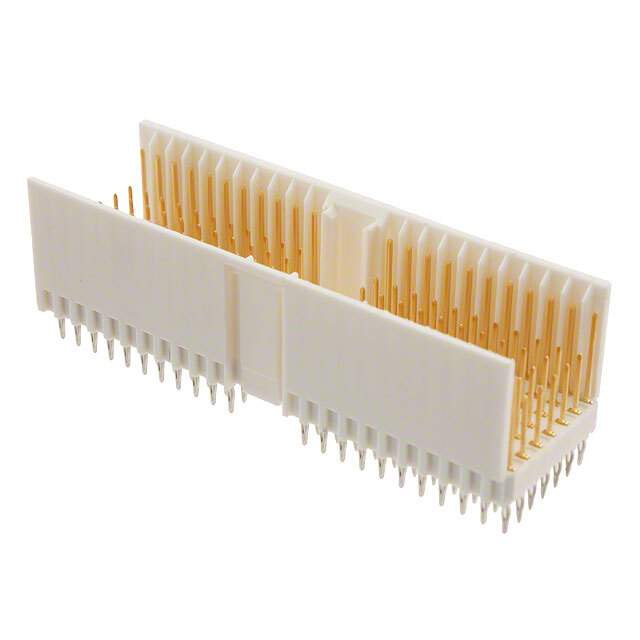

HM2P07PD5111N9LF Real Image
Same model may have multiple batches, images only for reference.

HM2P07PD5111N9LF

Part No HM2P07PD5111N9LF
Manufacturer Amphenol FCI
Catalog Backplane Connectors
Description CONN HEADER 154POS 2MM PRESS-FIT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Amphenol ICC (FCI)
Packaging Tray
Connector Type Header, Male Pins
Connector Style A 22
Number of Positions 154 (110 + 44 Ground)
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 5 + 2
Mounting Style Through Hole
Termination Press-Fit
Contact Finish Gold
Contact Finish Thickness Flash
Current Rating (Amps) 1.5A
Voltage Rating 750Vrms
Temperature Range - Operating -55°C ~ 125°C
Features Board Guide
Manufacturer Pack Quantity 48
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806386-HM2P07PD5111N9LF
Ultra Librarian 3D Model Ultra Librarian HM2P07PD5111N9LF CAD Model

Description

The HM2P07PD5111N9LF is a header connector from Amphenol ICC (FCI).

  • Positions: 154 (110 + 44 ground)
  • Pitch: 0.079 inches (2.00 mm)
  • Package: Tray
  • Termination: Press-Fit
  • Voltage Rating: 750Vrms
  • Current Rating: 1.5A
  • Popularity: Medium
  • Supply and Demand Status: Balanced
