Same model may have multiple batches, images only for reference.

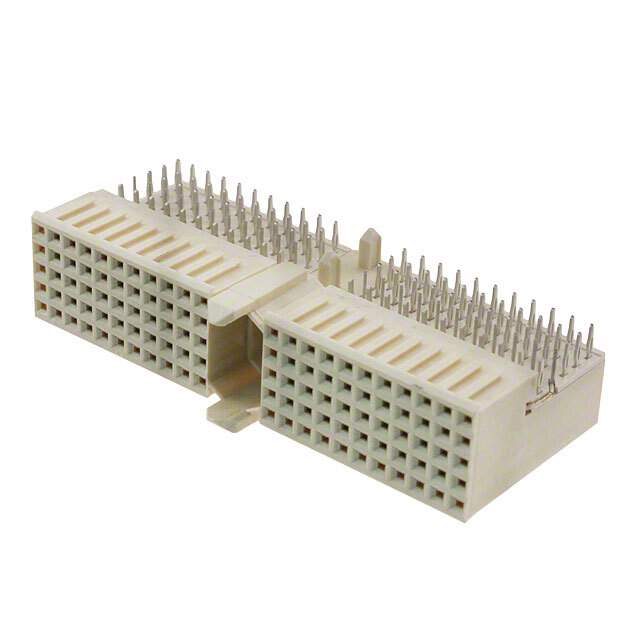

HM2R10PA5101N9LF Real Image
Same model may have multiple batches, images only for reference.

HM2R10PA5101N9LF

Part No HM2R10PA5101N9LF
Manufacturer Amphenol FCI
Catalog Backplane Connectors
Description CONN RECEPT 110POS 2MM PRESS-FIT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Amphenol ICC (FCI)
Packaging Tray
Connector Type Receptacle, Female Sockets
Connector Style A 22
Number of Positions 110
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 5
Mounting Style Board Edge, Through Hole, Right Angle
Termination Press-Fit
Contact Finish Gold
Contact Finish Thickness 30.0μin (0.76μm)
Current Rating (Amps) 1.5A
Voltage Rating 500V
Temperature Range - Operating -55°C ~ 125°C
Features Upper and Lower Shield
Manufacturer Pack Quantity 36
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807802-HM2R10PA5101N9LF
Ultra Librarian 3D Model Ultra Librarian HM2R10PA5101N9LF CAD Model

Description

The Amphenol ICC (FCI) 807802-HM2R10PA5101N9LF is a 110-position, 5-row, press-fit receptacle connector.

  • Sockets: Female
  • Shields: Upper and Lower
  • Voltage Rating: 500V
  • Mounting: Board Edge, Through Hole, Right Angle
  • Pitch: 0.079" (2.00mm)
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Series: A 22
  • Current Rating: 1.5A
  • Temperature Range: -55°C to 125°C
  • Packaging: Tray
  • Manufacturer Pack Quantity: 36
