Same model may have multiple batches, images only for reference.

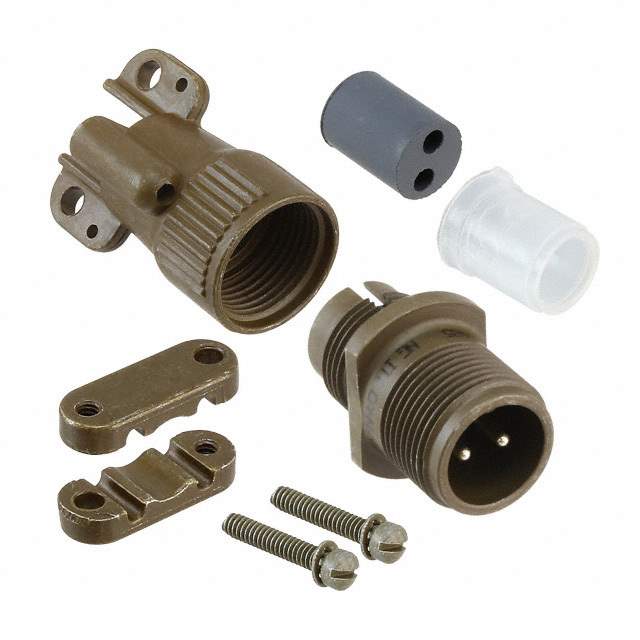

MS3101F10SL-4P Real Image
Same model may have multiple batches, images only for reference.

MS3101F10SL-4P

Part No MS3101F10SL-4P
Manufacturer Amphenol Industrial Operations
Catalog Circular Connectors
Description CONN RCPT MALE 2POS SOLDER CUP  /  2 Position Circular Connector Receptacle, Male Pins Solder Cup
Datasheet
MS3101F10SL-4P Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Amphenol Industrial Operations
Series Military, MIL-DTL-5015
Package Bulk
Connector Type Receptacle, Male Pins
Number of Positions 2
Shell Size - Insert 10SL-4
Mounting Type Free Hanging (In-Line)
Termination Solder Cup
Fastening Type Threaded
Orientation N (Normal)
Primary Material Metal
Shell Material Aluminum Alloy
Shell Finish Olive Drab Chromate over Cadmium
Contact Finish - Mating Silver
Color Olive Drab
Ingress Protection Environment Resistant
Features Backshell, Cable Clamp
Shielding Unshielded
Cable Opening 0.281" (7.14mm)
Temperature Range - Operating -55°C ~ 125°C
Backshell Material, Plating Aluminum Alloy, Olive Drab Chromate over Cadmium
Contact Material Copper Alloy
Insert Material Neoprene
Applications Marine, Military
Base Product Number MS3101F10
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Other Names 1047411104P,AMS3101F10SL-4P,MS3101F10SL-4P-ND,10-474111-04P,339-MS3101F10SL-4P,MS3101F10SL4P,AMS3101F10SL-4P-ND
Standard Package 1
Win Source Part Number 1035233-MS3101F10SL-4P
Ultra Librarian 3D Model Ultra Librarian MS3101F10SL-4P CAD Model

Description

The MS3101F10SL-4P is a circular connector from Amphenol Industrial Operations’ Military, MIL-DTL-5015 series.

  • Type: Receptacle
  • Pins: Male
  • Fastening Type: Threaded
  • Positions: Two
  • Environment Resistant: Yes
  • Shell Size: 10SL-4
  • Cable Opening: 0.281” (7.14mm)
  • Applications: Marine and Military
  • Operating Temperature: -55°C to 125°C
  • RoHS Compliant: No
