Same model may have multiple batches, images only for reference.

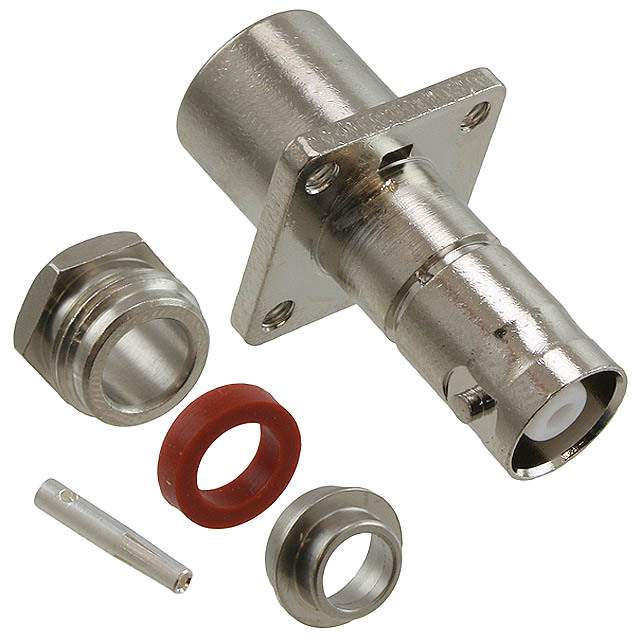

000-28175 Real Image
Same model may have multiple batches, images only for reference.

000-28175

Part No 000-28175
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF)
Description CONN MHV JACK STR SOLDER / Conn MVH Solder ST Panel Mount RCP Silver
Datasheet
000-28175 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol RF Division
Packaging Bulk
Connector Style MHV
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Clamp
Impedance Non-Constant
Mounting Panel Mount
Mounting Feature Flange
Cable Group RG-59, 59B, 62, 140, 210, Belden 8241, 8263, 8279, 9209
Fastening Type Bayonet Lock
Frequency - Max 50Ghz
Housing Color Silver
Ingress Protection Weatherproof
Includes 5 pcs - 1 Connector, 1 Braid Clamp, 1 Clamp, 1 Contact, 1 Gasket
Body Material Brass
Body Finish Nickel
Center Contact Plating Silver
Dielectric Material Polytetrafluoroethylene (PTFE)
Operating Temperature Range -65°C ~ 165°C
Center Contact Material Beryllium Copper
Voltage Rating 5000V
Mating Cycles 500
Win Source Part Number 793136-000-28175
Popularity Medium
Supply and Demand Status Limited
Family Name 000-28175
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin China
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian 000-28175 CAD Model

Description

The 793136-000-28175 is a female socket jack connector from Amphenol RF Division.

  • Fastening Type: Bayonet Lock
  • Contact Termination: Solder
  • Weatherproof: Yes
  • Ingress Protection: Yes
  • Frequency-Max: 50Ghz
  • Voltage Rating: 5000V
  • Mounting Type: Panel Mount
  • Mounting Feature: Flange
  • Body Material: Brass
  • Body Finish: Nickel
  • Center Contact Material: Beryllium Copper
  • Center Contact Plating: Silver
