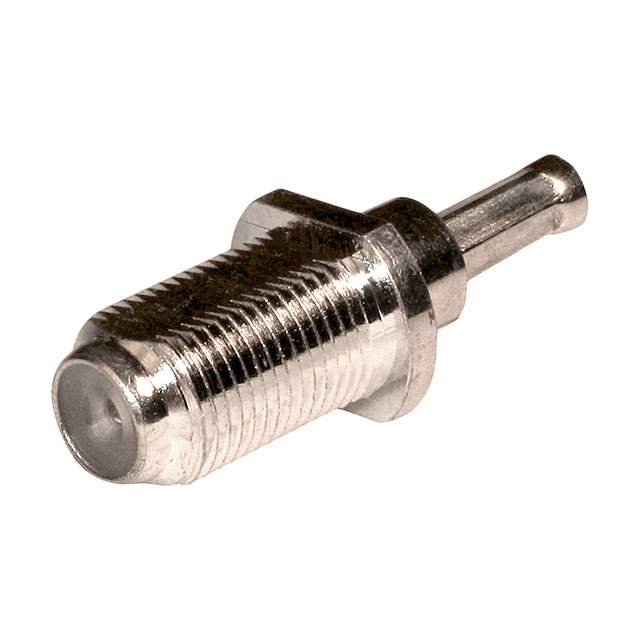

Same model may have multiple batches, images only for reference.

222114

Get a Quote

Part No	222114
Manufacturer	Amphenol-RF Division
Catalog	Coaxial Connectors (RF) - Assemblies
Description	CONN F JACK STR 75OHM SOLDER / F Type Connector Jack, Female Socket 75Ohm Panel Mount Solder
Datasheet	222114 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Coaxial Connectors (RF)>Coaxial Connector (RF) Assemblies
Mfr	Amphenol-RF Division
Series	-
Package	Bag
Connector Style	F Type
Connector Type	Jack, Female Socket
Contact Termination	Solder
Shield Termination	Crimp
Impedance	75Ohm
Mounting Type	Panel Mount
Mounting Feature	Bulkhead - Front Side Nut
Cable Group	RG-179, 179A, 179B, 187, 187A, Belden 9221, M17/94-RG179
Fastening Type	Threaded
Frequency - Max	1 GHz
Number of Ports	1
Features	-
Housing Color	Silver
Ingress Protection	-
Center Contact Material	Brass
Includes	-
Body Material	Brass
Body Finish	Tin
Center Contact Plating	Tin
Dielectric Material	Polypropylene (PP)
Temperature Range - Operating	-
Mating Cycles	500
Insertion Loss	-
Base Product Number	2221
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4010
California Prop 65	Warning Information
Standard Package	100 pcs
Win Source Part Number	1383318-222114
Ultra Librarian 3D Model	Ultra Librarian 222114 CAD Model

Description

The 1383318-222114 is a coaxial connector (RF) assembly from Amphenol-RF Division. It features a jack, female socket connector type with a threaded fastening.

Connector Type: Jack, Female Socket
Fastening: Threaded
Package Type: Bag
Standard Package: 100 pieces
Impedance: 75Ohm
Maximum Frequency: 1 GHz
Mounting Type: Panel Mount
Mounting Feature: Bulkhead - Front Side Nut
Body Material: Brass
Housing Color: Silver
Center Contact Material: Tin
Center Contact Plating: Tin
Moisture Sensitivity Level: 1 (Unlimited)
