Same model may have multiple batches, images only for reference.

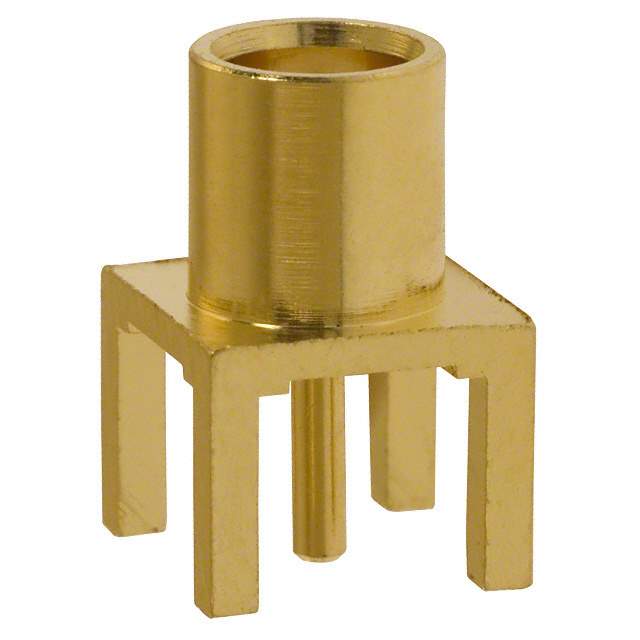

252105 Real Image
Same model may have multiple batches, images only for reference.

252105

Part No 252105
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN MCX RCPT STR 50 OHM PCB
Datasheet
252105 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Amphenol-RF Division
Package Bag
Product Status Active
Connector Style MCX
Connector Type Receptacle, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Through Hole
Fastening Type Snap-On
Frequency - Max 6 GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Beryllium Copper
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Voltage Rating 225 V
Mating Cycles 500
Insertion Loss 0.1dB
Base Product Number 2521
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
California Prop 65 Warning Information
Win Source Part Number 854776-252105
Ultra Librarian 3D Model Ultra Librarian 252105 CAD Model

Description

The 854776-252105 is a receptacle female socket MCX coaxial connector assembly from Amphenol-RF Division.

  • Fastening Type: Snap-on
  • Voltage Rating: 225 V
  • Connector Material: Brass
  • Housing Color: Gold
  • Impedance: 50 Ohm
  • Insertion Loss: 0.1dB
  • Center Contact Material: Beryllium Copper
  • Center Contact Plating: Gold
  • Dielectric Material: Polytetrafluoroethylene (PTFE)
  • Mating Cycle: 500
  • Mounting: Through Hole
  • Operating Temperature Range: Not specified
  • Product Status: Active
  • REACH: Compliant
  • Application: Coaxial connectors for RF signals
