Same model may have multiple batches, images only for reference.

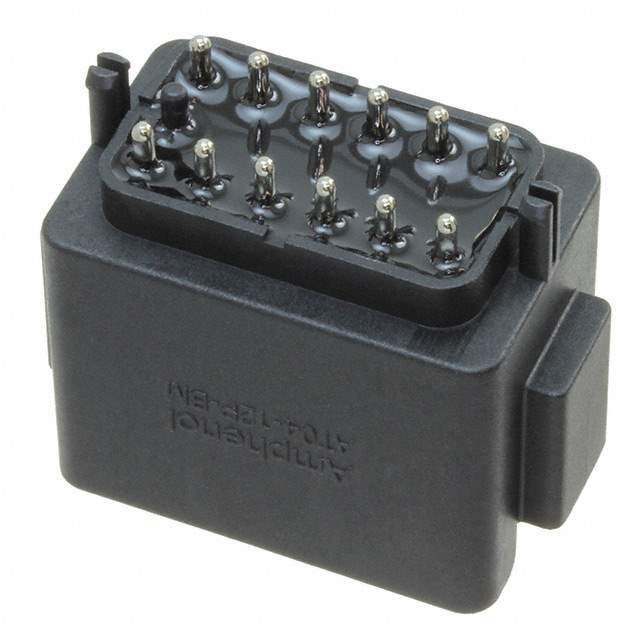

AT04-12PB-BM04 Real Image
Same model may have multiple batches, images only for reference.

AT04-12PB-BM04

Part No AT04-12PB-BM04
Manufacturer Amphenol Sine Systems Corp
Catalog Rectangular Connectors
Description CONN HEADER VERT 12POS / Connector Header Through Hole 12 position
Datasheet
AT04-12PB-BM04 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Amphenol Sine Systems Corp
Series BoardLock™ AT
Package Tray
Connector Type Receptacle
Contact Type Male Pin
Number of Positions 12
Number of Rows 2
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Holder
Insulation Height 0.835" (21.21mm)
Contact Shape Circular
Contact Finish - Mating Nickel
Contact Material Copper Alloy
Insulation Material Thermoplastic
Features Board Lock, Potting Wall
Temperature Range - Operating -55°C ~ 125°C
Ingress Protection IP67
Insulation Color Black
Current Rating (Amps) 13A
Applications Automotive, General Purpose, Industrial
Base Product Number AT04-12PB
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 889-1924
Standard Package 200
Win Source Part Number 994640-AT04-12PB-BM04
Ultra Librarian 3D Model Ultra Librarian AT04-12PB-BM04 CAD Model

Description

The Amphenol Sine Systems Corp 994640-AT04-12PB-BM04 is a rectangular connector header with a male pin contact type and a contact material of copper alloy.

  • Contact Type: Male Pin
  • Contact Material: Copper Alloy
  • Receptacle Type: Receptacle
  • Fastening Type: Latch Holder
  • Termination: Solder
  • Series: BoardLock™ AT series
  • Applications: Automotive, General Purpose, and Industrial
  • Number of Positions: 12
  • Packaging: Tray
  • Mounting Type: Through Hole
  • Shrouding: Shrouded-4 Wall
