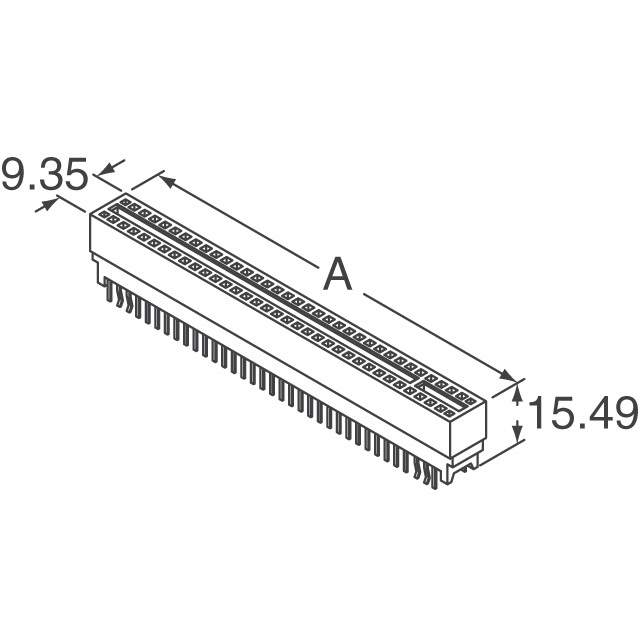

10046971-015LF Real Image
Same model may have multiple batches, images only for reference.

10046971-015LF

Part No 10046971-015LF
Manufacturer Amphenol
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FML 34POS 0.100 / 34 (Power) Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr Amphenol ICC (FCI)
Series Power Edge
Package Tray
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 34
Number of Positions 34 (Power)
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.100" (2.54mm)
Read Out Dual
Mounting Type Through Hole
Termination Kinked Pin, Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Contact Type Cantilever
Color Black
Temperature Range - Operating -5°C ~ 105°C
Material - Insulation Thermoplastic
Base Product Number 10046971
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 70
Win Source Part Number 1224209-10046971-015LF
Ultra Librarian 3D Model Ultra Librarian 10046971-015LF CAD Model

Description

The Power Edge series card edge connector from Amphenol ICC (FCI) is a high-quality, reliable connector designed for use in a variety of applications.

  • Series: Power Edge
  • Power Positions: 34
  • Contact Type: Cantilever
  • Pitch: 0.100 inches
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0 microinches
  • Contact Material: Copper Alloy
  • Insulation Material: Thermoplastic
  • Gender: Female
  • Mounting Type: Through Hole
  • Temperature Range: -5 to 105 degrees Celsius
  • Package: Trays
  • Standard Package: 70
  • Pin Type: Kinked Pin
