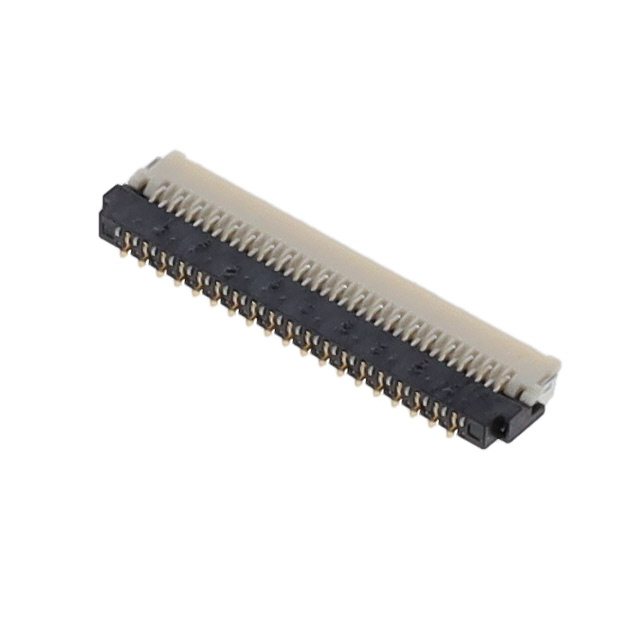

10061122-391320HLF Real Image
Same model may have multiple batches, images only for reference.

10061122-391320HLF

Part No 10061122-391320HLF
Manufacturer Amphenol
Catalog Flat Flex Cables (FFC, FPC)
Description CONN FPC BOTTOM 39POS 0.30MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 17 Weeks
Features 39 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Manufacturer AMPHENOL
Series YLL-D
Package Reel - TR
Operating Temperature Range -55°C ~ 85°C
Mounting Surface Mount, Right Angle
Family Name 10061122
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number 10061122-391320HLF-ND, 609-5376-6, 609-5376-2, 609-5376-1
Quantity per package 5000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 844329-10061122-391320HLF
Ultra Librarian 3D Model Ultra Librarian 10061122-391320HLF CAD Model

Description

The AMPHENOL 844329-10061122-391320HLF is a 39 position FPC connector with contacts at the bottom 0.012" (0.30mm) surface mount and right angle.

  • Manufacturer: AMPHENOL
  • Product Name: 844329-10061122-391320HLF
  • Connector Type: FPC Connector
  • Positions: 39
  • Contact Location: Bottom
  • Contact Spacing: 0.012" (0.30mm)
  • Mounting Type: Surface Mount
  • Angle: Right Angle
  • Package: Reel - TR
  • Quantity per Package: 5000
  • Series: YLL-D
  • Category: Connectors
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Estimated Production Lead Time: 17 weeks
  • ECCN: EAR99
  • HTSUS: 8536.69
