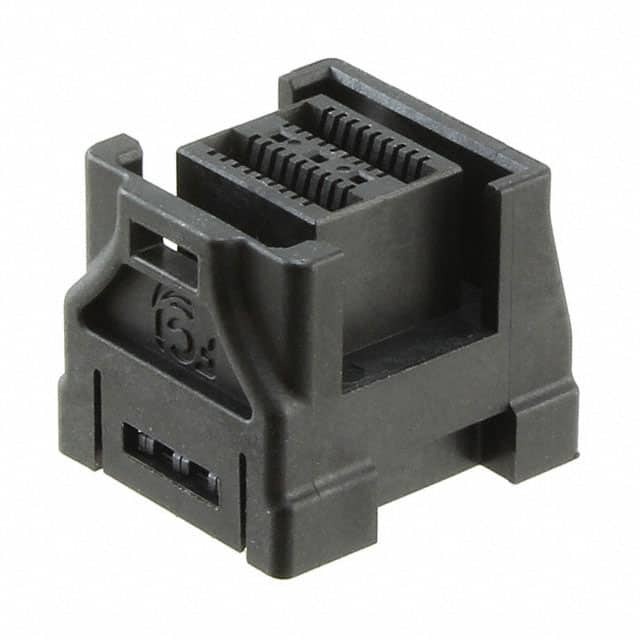

10120666-101LF
Same model may have multiple batches, images only for reference.

10120666-101LF

Part No 10120666-101LF
Manufacturer Amphenol
Catalog Pluggable Connectors
Description CONN MINI HD SAS RCPT 16POS PCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Pluggable Connectors - Pluggable Connector Assemblies
Mfr Amphenol
Package Tray
Product Status Active
Connector Style Receptacle
Connector Type SAS, Mini HD
Number of Positions 16
Mounting Type Through Hole
Termination Press-Fit
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number 10120666
Standard Package 84 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 904968-10120666-101LF
Ultra Librarian 3D Model Ultra Librarian 10120666-101LF CAD Model

Description

The 904968-10120666-101LF is a pluggable connector assembly from Amphenol.

  • Connector Type: SAS Mini HD connector
  • Style: Receptacle
  • Termination: Press-fit
  • Positions: 16
  • Mounting: Through-hole
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Package: Tray
  • Pieces per Package: 84
  • Status: Active product
